1. Product Overview
High-pressure integral fittings are high-pressure fluid connection components used in cementing, fracturing, and acidizing equipment. They are widely used in high-pressure discharge lines, inlet lines, temporary flowlines, well-test lines, and other high-pressure transfer systems.
Specifications cover 2 in to 4 in, with CWP ratings from 6,000 psi to 20,000 psi. The advertised -46 °C to 121 °C envelope is configuration-dependent and must be verified against the ordered material, seal and connection specification.
The integral fitting series includes 90-degree elbows, long-radius 90-degree elbows, Integral Tee, Integral Y Tee, Integral 45° Lateral Tee, Integral Crosses, Integral Double 45° Lateral Tees, and Integral Connections with Pressure Gauge Ports.
2. Design Features
API 6A flanged interfaces, where supplied, follow the applicable dimensional requirements of API Spec 6A. Material class and other product requirements must be stated and documented for the ordered configuration.
The body is manufactured from alloy steel and heat-treated to the specified mechanical-property requirements for rated pressure-containing service and erosion resistance.
The hammer-union wing nut uses an ACME-form make-up thread for quick assembly and dismantling. Pressure sealing is provided by the union sealing interface, not by the ACME thread.
Seal-interface geometry, surface finish and dimensional control are matched to the specified union or flange connection; pressure integrity depends on correct mating components and make-up.
High-erosion regions may use increased wall thickness where supported by the approved design; inspection limits and retirement criteria remain configuration-specific.
3. Integral Fittings Main Technical Parameters

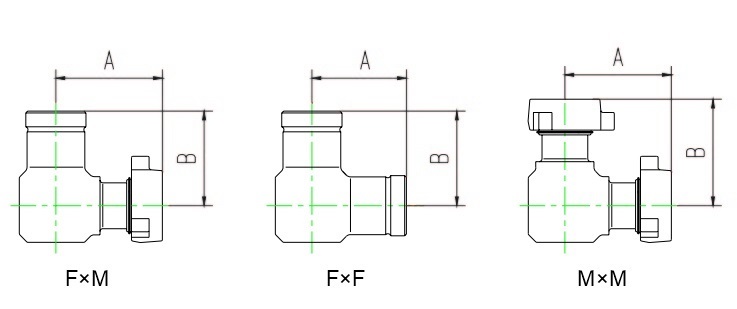

| 90° Elbow | ||||||
|---|---|---|---|---|---|---|
| Model | Nominal Size | Cold Working Pressure | Overall Dimensions (mm) | Connection Type | Service | |
| A | B | |||||
| 2" Fig 602, 6,000 psi, F × M | 2″ | 6,000 psi | 154 | 154 | Fig 602 (F×M) | Standard |
| 2" Fig 602, 6,000 psi, F × F | Fig 602 (F×F) | |||||
| 2" Fig 602, 6,000 psi, M × M | Fig 602 (M×M) | |||||
| 3" Fig 602, 6,000 psi, F × M | 3″ | 214 | 214 | Fig 602 (F×M) | ||
| 3" Fig 602, 6,000 psi, F × F | Fig 602 (F×F) | |||||
| 3" Fig 602, 6,000 psi, M × M | Fig 602 (M×M) | |||||
| 4" Fig 602, 6,000 psi, F × M | 4″ | 214 | 214 | Fig 602 (F×M) | ||
| 4" Fig 602, 6,000 psi, F × F | Fig 602 (F×F) | |||||
| 4" Fig 602, 6,000 psi, M × M | Fig 602 (M×M) | |||||
| 2" Fig 1002, 10,000 psi, F × M | 2″ | 10,000 psi | 154 | 154 | Fig 1002 (F×M) | |
| 2" Fig 1002, 10,000 psi, F × F | Fig 1002 (F×F) | |||||
| 2" Fig 1002, 10,000 psi, M × M | Fig 1002 (M×M) | |||||
| 3" Fig 1002, 10,000 psi, F × M | 3″ | 214 | 214 | Fig 1002 (F×M) | ||
| 3" Fig 1002, 10,000 psi, F × F | Fig 1002 (F×F) | |||||
| 3" Fig 1002, 10,000 psi, M × M | Fig 1002 (M×M) | |||||
| 4" Fig 1002, 10,000 psi, F × M | 4″ | 214 | 214 | Fig 1002 (F×M) | ||
| 4" Fig 1002, 10,000 psi, F × F | Fig 1002 (F×F) | |||||
| 4" Fig 1002, 10,000 psi, M × M | Fig 1002 (M×M) | |||||
| 2" Fig 1502, 15,000 psi, F × M | 2″ | 15,000 psi | 154 | 154 | Fig 1502 (F×M) | |
| 2" Fig 1502, 15,000 psi, F × F | Fig 1502 (F×F) | |||||
| 2" Fig 1502, 15,000 psi, M × M | Fig 1502 (M×M) | |||||
| 3" Fig 1502, 15,000 psi, F × M | 3″ | 214 | 214 | Fig 1502 (F×M) | ||
| 3" Fig 1502, 15,000 psi, F × F | Fig 1502 (F×F) | |||||
| 3" Fig 1502, 15,000 psi, M × M | Fig 1502 (M×M) | |||||
| 4" Fig 1502, 15,000 psi, F × M | 4″ | 214 | 214 | Fig 1502 (F×M) | ||
| 4" Fig 1502, 15,000 psi, F × F | Fig 1502 (F×F) | |||||
| 4" Fig 1502, 15,000 psi, M × M | Fig 1502 (M×M) | |||||
| 2" Fig 2002, 20,000 psi, F × M | 2″ | 20,000 psi | 185 | 154 | Fig 2002 (F×M) | |
| 2" Fig 2002, 20,000 psi, F × F | Fig 2002 (F×F) | |||||
| 2" Fig 2002, 20,000 psi, M × M | Fig 2002 (M×M) | |||||
| 3" Fig 2002, 20,000 psi, F × M | 3″ | 266.5 | 266.5 | Fig 2002 (F×M) | ||
| 3" Fig 2002, 20,000 psi, F × F | Fig 2002 (F×F) | |||||
| 3" Fig 2002, 20,000 psi, M × M | Fig 2002 (M×M) | |||||
| H2S Service | ||||||
| 2" Fig 602, 6,000 psi, F × M, NACE | 2″ | 6,000 psi | 154 | 154 | Fig 602 (F×M) | H2S |
| 2" Fig 602, 6,000 psi, F × F, NACE | Fig 602 (F×F) | |||||
| 2" Fig 602, 6,000 psi, M × M, NACE | Fig 602 (M×M) | |||||
| 3" Fig 602, 6,000 psi, F × M, NACE | 3″ | 214 | 214 | Fig 602 (F×M) | ||
| 3" Fig 602, 6,000 psi, F × F, NACE | Fig 602 (F×F) | |||||
| 3" Fig 602, 6,000 psi, M × M, NACE | Fig 602 (M×M) | |||||
| 4" Fig 602, 6,000 psi, F × M, NACE | 4″ | 214 | 214 | Fig 602 (F×M) | ||
| 4" Fig 602, 6,000 psi, F × F, NACE | Fig 602 (F×F) | |||||
| 4" Fig 602, 6,000 psi, M × M, NACE | Fig 602 (M×M) | |||||
| 2" Fig 1002, 7,500 psi, F × M, NACE | 2″ | 7,500 psi | 154 | 154 | Fig 1002 (F×M) | |
| 2" Fig 1002, 7,500 psi, F × F, NACE | Fig 1002 (F×F) | |||||
| 2" Fig 1002, 7,500 psi, M × M, NACE | Fig 1002 (M×M) | |||||
| 3" Fig 1002, 7,500 psi, F × M, NACE | 3″ | 214 | 214 | Fig 1002 (F×M) | ||
| 3" Fig 1002, 7,500 psi, F × F, NACE | Fig 1002 (F×F) | |||||
| 3" Fig 1002, 7,500 psi, M × M, NACE | Fig 1002 (M×M) | |||||
| 4" Fig 1002, 7,500 psi, F × M, NACE | 4″ | 214 | 214 | Fig 1002 (F×M) | ||
| 4" Fig 1002, 7,500 psi, F × F, NACE | Fig 1002 (F×F) | |||||
| 4" Fig 1002, 7,500 psi, M × M, NACE | Fig 1002 (M×M) | |||||
| 2" Fig 1502, 10,000 psi, F × M, NACE | 2″ | 10,000 psi | 154 | 154 | Fig 1502 (F×M) | |
| 2" Fig 1502, 10,000 psi, F × F, NACE | Fig 1502 (F×F) | |||||
| 2" Fig 1502, 10,000 psi, M × M, NACE | Fig 1502 (M×M) | |||||
| 3" Fig 1502, 10,000 psi, F × M, NACE | 3″ | 214 | 214 | Fig 1502 (F×M) | ||
| 3" Fig 1502, 10,000 psi, F × F, NACE | Fig 1502 (F×F) | |||||
| 3" Fig 1502, 10,000 psi, M × M, NACE | Fig 1502 (M×M) | |||||
| 4" Fig 1502, 10,000 psi, F × M, NACE | 4″ | 214 | 214 | Fig 1502 (F×M) | ||
| 4" Fig 1502, 10,000 psi, F × F, NACE | Fig 1502 (F×F) | |||||
| 4" Fig 1502, 10,000 psi, M × M, NACE | Fig 1502 (M×M) | |||||
| 2" Fig 2202, 15,000 psi, F × M, NACE | 2″ | 15,000 psi | 185 | 154 | Fig 2202 (F×M) | |
| 2" Fig 2202, 15,000 psi, F × F, NACE | Fig 2202 (F×F) | |||||
| 2" Fig 2202, 15,000 psi, M × M, NACE | Fig 2202 (M×M) | |||||
| 3" Fig 2202, 15,000 psi, F × M, NACE | 3″ | 266.5 | 266.5 | Fig 2202 (F×M) | ||
| 3" Fig 2202, 15,000 psi, F × F, NACE | Fig 2202 (F×F) | |||||
| 3" Fig 2202, 15,000 psi, M × M, NACE | Fig 2202 (M×M) | |||||

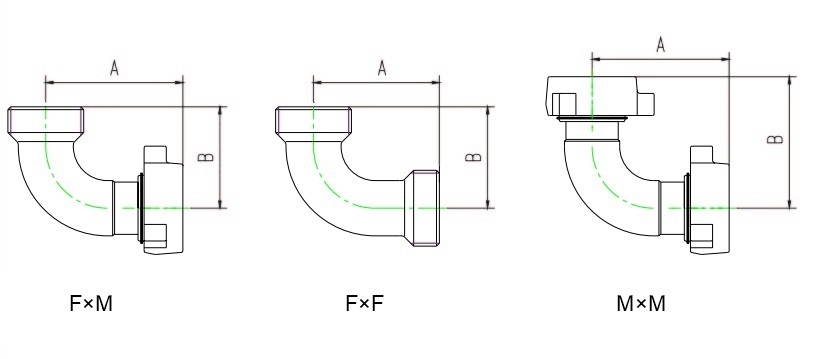

| Long-Radius 90° Elbow | ||||||
|---|---|---|---|---|---|---|
| Model | Nominal Size | Cold Working Pressure | Overall Dimensions (mm) | Connection Type | Service | |
| A | B | |||||
| 2" Fig 602, 6,000 psi, F × M | 2″ | 6,000 psi | 162 | 171 | Fig 602 (F×M) | Standard |
| 2" Fig 602, 6,000 psi, F × F | Fig 602 (F×F) | |||||
| 2" Fig 602, 6,000 psi, M × M | Fig 602 (M×M) | |||||
| 3" Fig 602, 6,000 psi, F × M | 3″ | 239 | 202 | Fig 602 (F×M) | ||
| 3" Fig 602, 6,000 psi, F × F | Fig 602 (F×F) | |||||
| 3" Fig 602, 6,000 psi, M × M | Fig 602 (M×M) | |||||
| 4" Fig 602, 6,000 psi, F × M | 4″ | 260 | 250 | Fig 602 (F×M) | ||
| 4" Fig 602, 6,000 psi, F × F | Fig 602 (F×F) | |||||
| 4" Fig 602, 6,000 psi, M × M | Fig 602 (M×M) | |||||
| 2" Fig 1002, 10,000 psi, F × M | 2″ | 10,000 psi | 162 | 171 | Fig 1002 (F×M) | |
| 2" Fig 1002, 10,000 psi, F × F | Fig 1002 (F×F) | |||||
| 2" Fig 1002, 10,000 psi, M × M | Fig 1002 (M×M) | |||||
| 3" Fig 1002, 10,000 psi, F × M | 3″ | 239 | 202 | Fig 1002 (F×M) | ||
| 3" Fig 1002, 10,000 psi, F × F | Fig 1002 (F×F) | |||||
| 3" Fig 1002, 10,000 psi, M × M | Fig 1002 (M×M) | |||||
| 4" Fig 1002, 10,000 psi, F × M | 4″ | 260 | 250 | Fig 1002 (F×M) | ||
| 4" Fig 1002, 10,000 psi, F × F | Fig 1002 (F×F) | |||||
| 4" Fig 1002, 10,000 psi, M × M | Fig 1002 (M×M) | |||||
| 2" Fig 1502, 15,000 psi, F × M | 2″ | 15,000 psi | 162 | 171 | Fig 1502 (F×M) | |
| 2" Fig 1502, 15,000 psi, F × F | Fig 1502 (F×F) | |||||
| 2" Fig 1502, 15,000 psi, M × M | Fig 1502 (M×M) | |||||
| 3" Fig 1502, 15,000 psi, F × M | 3″ | 239 | 202 | Fig 1502 (F×M) | ||
| 3" Fig 1502, 15,000 psi, F × F | Fig 1502 (F×F) | |||||
| 3" Fig 1502, 15,000 psi, M × M | Fig 1502 (M×M) | |||||
| 4" Fig 1502, 15,000 psi, F × M | 4″ | 260 | 250 | Fig 1502 (F×M) | ||
| 4" Fig 1502, 15,000 psi, F × F | Fig 1502 (F×F) | |||||
| 4" Fig 1502, 15,000 psi, M × M | Fig 1502 (M×M) | |||||
| 3" Fig 2002, 20,000 psi, F × M | 3″ | 20,000 psi | 279 | 270 | Fig 2002 (F×M) | |
| 3" Fig 2002, 20,000 psi, F × F | Fig 2002 (F×F) | |||||
| 3" Fig 2002, 20,000 psi, M × M | Fig 2002 (M×M) | |||||
| H2S Service | ||||||
| 2" Fig 602, 6,000 psi, F × M, NACE | 2″ | 6,000 psi | 162 | 171 | Fig 602 (F×M) | H2S |
| 2" Fig 602, 6,000 psi, F × F, NACE | Fig 602 (F×F) | |||||
| 2" Fig 602, 6,000 psi, M × M, NACE | Fig 602 (M×M) | |||||
| 3" Fig 602, 6,000 psi, F × M, NACE | 3″ | 239 | 202 | Fig 602 (F×M) | ||
| 3" Fig 602, 6,000 psi, F × F, NACE | Fig 602 (F×F) | |||||
| 3" Fig 602, 6,000 psi, M × M, NACE | Fig 602 (M×M) | |||||
| 4" Fig 602, 6,000 psi, F × M, NACE | 4″ | 260 | 250 | Fig 602 (F×M) | ||
| 4" Fig 602, 6,000 psi, F × F, NACE | Fig 602 (F×F) | |||||
| 4" Fig 602, 6,000 psi, M × M, NACE | Fig 602 (M×M) | |||||
| 2" Fig 1002, 7,500 psi, F × M, NACE | 2″ | 7,500 psi | 162 | 171 | Fig 1002 (F×M) | |
| 2" Fig 1002, 7,500 psi, F × F, NACE | Fig 1002 (F×F) | |||||
| 2" Fig 1002, 7,500 psi, M × M, NACE | Fig 1002 (M×M) | |||||
| 3" Fig 1002, 7,500 psi, F × M, NACE | 3″ | 239 | 202 | Fig 1002 (F×M) | ||
| 3" Fig 1002, 7,500 psi, F × F, NACE | Fig 1002 (F×F) | |||||
| 3" Fig 1002, 7,500 psi, M × M, NACE | Fig 1002 (M×M) | |||||
| 4" Fig 1002, 7,500 psi, F × M, NACE | 4″ | 259 | 239 | Fig 1002 (F×M) | ||
| 4" Fig 1002, 7,500 psi, F × F, NACE | Fig 1002 (F×F) | |||||
| 4" Fig 1002, 7,500 psi, M × M, NACE | Fig 1002 (M×M) | |||||
| 2" Fig 1502, 10,000 psi, F × M, NACE | 2″ | 10,000 psi | 162 | 171 | Fig 1502 (F×M) | |
| 2" Fig 1502, 10,000 psi, F × F, NACE | Fig 1502 (F×F) | |||||
| 2" Fig 1502, 10,000 psi, M × M, NACE | Fig 1502 (M×M) | |||||
| 3" Fig 1502, 10,000 psi, F × M, NACE | 3″ | 239 | 202 | Fig 1502 (F×M) | ||
| 3" Fig 1502, 10,000 psi, F × F, NACE | Fig 1502 (F×F) | |||||
| 3" Fig 1502, 10,000 psi, M × M, NACE | Fig 1502 (M×M) | |||||
| 4" Fig 1502, 10,000 psi, F × M, NACE | 4″ | 260 | 250 | Fig 1502 (F×M) | ||
| 4" Fig 1502, 10,000 psi, F × F, NACE | Fig 1502 (F×F) | |||||
| 4" Fig 1502, 10,000 psi, M × M, NACE | Fig 1502 (M×M) | |||||
| 3" Fig 2202, 15,000 psi, F × M, NACE | 3″ | 15,000 psi | 279 | 270 | Fig 2202 (F×M) | |
| 3" Fig 2202, 15,000 psi, F × F, NACE | Fig 2202 (F×F) | |||||
| 3" Fig 2202, 15,000 psi, M × M, NACE | Fig 2202 (M×M) | |||||

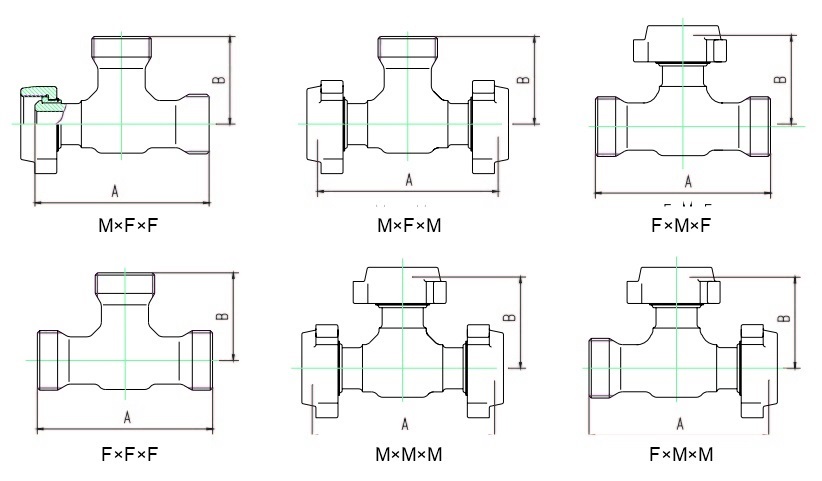

| Integral Tee | ||||||
|---|---|---|---|---|---|---|
| Model | Nominal Size | Cold Working Pressure | Overall Dimensions (mm) | Connection Type | Service | |
| A | B | |||||
| 2" Fig 602, 6,000 psi, M × F × F | 2″ | 6,000 psi | 308 | 154 | Fig 602 (M×F×F) | Standard |
| 2" Fig 602, 6,000 psi, M × F × M | Fig 602 (M×F×M) | |||||
| 2" Fig 602, 6,000 psi, F × M × F | Fig 602 (F×M×F) | |||||
| 2" Fig 602, 6,000 psi, F × F × F | Fig 602 (F×F×F) | |||||
| 2" Fig 602, 6,000 psi, M × M × M | Fig 602 (M×M×M) | |||||
| 2" Fig 602, 6,000 psi, F × M × M | Fig 602 (F×M×M) | |||||
| 3" Fig 602, 6,000 psi, M × F × F | 3″ | 428 | 214 | Fig 602 (M×F×F) | ||
| 3" Fig 602, 6,000 psi, M × F × M | Fig 602 (M×F×M) | |||||
| 3" Fig 602, 6,000 psi, F × M × F | Fig 602 (F×M×F) | |||||
| 3" Fig 602, 6,000 psi, F × F × F | Fig 602 (F×F×F) | |||||
| 3" Fig 602, 6,000 psi, M × M × M | Fig 602 (M×M×M) | |||||
| 3" Fig 602, 6,000 psi, F × M × M | Fig 602 (F×M×M) | |||||
| 4" Fig 602, 6,000 psi, M × F × F | 4″ | 428 | 214 | Fig 602 (M×F×F) | ||
| 4" Fig 602, 6,000 psi, M × F × M | Fig 602 (M×F×M) | |||||
| 4" Fig 602, 6,000 psi, F × M × F | Fig 602 (F×M×F) | |||||
| 4" Fig 602, 6,000 psi, F × F × F | Fig 602 (F×F×F) | |||||
| 4" Fig 602, 6,000 psi, M × M × M | Fig 602 (M×M×M) | |||||
| 4" Fig 602, 6,000 psi, F × M × M | Fig 602 (F×M×M) | |||||
| 2" Fig 1002, 10,000 psi, M × F × F | 2″ | 10,000 psi | 308 | 154 | Fig 1002 (M×F×F) | |
| 2" Fig 1002, 10,000 psi, M × F × M | Fig 1002 (M×F×M) | |||||
| 2" Fig 1002, 10,000 psi, F × M × F | Fig 1002 (F×M×F) | |||||
| 2" Fig 1002, 10,000 psi, F × F × F | Fig 1002 (F×F×F) | |||||
| 2" Fig 1002, 10,000 psi, M × M × M | Fig 1002 (M×M×M) | |||||
| 2" Fig 1002, 10,000 psi, F × M × M | Fig 1002 (F×M×M) | |||||
| 3" Fig 1002, 10,000 psi, M × F × F | 3″ | 428 | 214 | Fig 1002 (M×F×F) | ||
| 3" Fig 1002, 10,000 psi, M × F × M | Fig 1002 (M×F×M) | |||||
| 3" Fig 1002, 10,000 psi, F × M × F | Fig 1002 (F×M×F) | |||||
| 3" Fig 1002, 10,000 psi, F × F × F | Fig 1002 (F×F×F) | |||||
| 3" Fig 1002, 10,000 psi, M × M × M | Fig 1002 (M×M×M) | |||||
| 3" Fig 1002, 10,000 psi, F × M × M | Fig 1002 (F×M×M) | |||||
| 4" Fig 1002, 10,000 psi, M × F × F | 4″ | 428 | 214 | Fig 1002 (M×F×F) | ||
| 4" Fig 1002, 10,000 psi, M × F × M | Fig 1002 (M×F×M) | |||||
| 4" Fig 1002, 10,000 psi, F × M × F | Fig 1002 (F×M×F) | |||||
| 4" Fig 1002, 10,000 psi, F × F × F | Fig 1002 (F×F×F) | |||||
| 4" Fig 1002, 10,000 psi, M × M × M | Fig 1002 (M×M×M) | |||||
| 4" Fig 1002, 10,000 psi, F × M × M | Fig 1002 (F×M×M) | |||||
| 2" Fig 1502, 15,000 psi, M × F × F | 2″ | 15,000 psi | 308 | 154 | Fig 1502 (M×F×F) | |
| 2" Fig 1502, 15,000 psi, M × F × M | Fig 1502 (M×F×M) | |||||
| 2" Fig 1502, 15,000 psi, F × M × F | Fig 1502 (F×M×F) | |||||
| 2" Fig 1502, 15,000 psi, F × F × F | Fig 1502 (F×F×F) | |||||
| 2" Fig 1502, 15,000 psi, M × M × M | Fig 1502 (M×M×M) | |||||
| 2" Fig 1502, 15,000 psi, F × M × M | Fig 1502 (F×M×M) | |||||
| 3" Fig 1502, 15,000 psi, M × F × F | 3″ | 428 | 214 | Fig 1502 (M×F×F) | ||
| 3" Fig 1502, 15,000 psi, M × F × M | Fig 1502 (M×F×M) | |||||
| 3" Fig 1502, 15,000 psi, F × M × F | Fig 1502 (F×M×F) | |||||
| 3" Fig 1502, 15,000 psi, F × F × F | Fig 1502 (F×F×F) | |||||
| 3" Fig 1502, 15,000 psi, M × M × M | Fig 1502 (M×M×M) | |||||
| 3" Fig 1502, 15,000 psi, F × M × M | Fig 1502 (F×M×M) | |||||
| 4" Fig 1502, 15,000 psi, M × F × F | 4″ | 428 | 214 | Fig 1502 (M×F×F) | ||
| 4" Fig 1502, 15,000 psi, M × F × M | Fig 1502 (M×F×M) | |||||
| 4" Fig 1502, 15,000 psi, F × M × F | Fig 1502 (F×M×F) | |||||
| 4" Fig 1502, 15,000 psi, F × F × F | Fig 1502 (F×F×F) | |||||
| 4" Fig 1502, 15,000 psi, M × M × M | Fig 1502 (M×M×M) | |||||
| 4" Fig 1502, 15,000 psi, F × M × M | Fig 1502 (F×M×M) | |||||
| 2" Fig 2002, 20,000 psi, M × F × F | 2″ | 20,000 psi | 346 | 185 | Fig 2002 (M×F×F) | |
| 2" Fig 2002, 20,000 psi, M × F × M | Fig 2002 (M×F×M) | |||||
| 2" Fig 2002, 20,000 psi, F × M × F | Fig 2002 (F×M×F) | |||||
| 2" Fig 2002, 20,000 psi, F × F × F | Fig 2002 (F×F×F) | |||||
| 2" Fig 2002, 20,000 psi, M × M × M | Fig 2002 (M×M×M) | |||||
| 2" Fig 2002, 20,000 psi, F × M × M | Fig 2002 (F×M×M) | |||||
| 3" Fig 2002, 20,000 psi, M × F × F | 3″ | 533 | 266.5 | Fig 2002 (M×F×F) | ||
| 3" Fig 2002, 20,000 psi, M × F × M | Fig 2002 (M×F×M) | |||||
| 3" Fig 2002, 20,000 psi, F × M × F | Fig 2002 (F×M×F) | |||||
| 3" Fig 2002, 20,000 psi, F × F × F | Fig 2002 (F×F×F) | |||||
| 3" Fig 2002, 20,000 psi, M × M × M | Fig 2002 (M×M×M) | |||||
| 3" Fig 2002, 20,000 psi, F × M × M | Fig 2002 (F×M×M) | |||||
| H2S Service | ||||||
| 2" Fig 602, 6,000 psi, M × F × F, NACE | 2″ | 6,000 psi | 308 | 154 | Fig 602 (M×F×F) | H2S |
| 2" Fig 602, 6,000 psi, M × F × M, NACE | Fig 602 (M×F×M) | |||||
| 2" Fig 602, 6,000 psi, F × M × F, NACE | Fig 602 (F×M×F) | |||||
| 2" Fig 602, 6,000 psi, F × F × F, NACE | Fig 602 (F×F×F) | |||||
| 2" Fig 602, 6,000 psi, M × M × M, NACE | Fig 602 (M×M×M) | |||||
| 2" Fig 602, 6,000 psi, F × M × M, NACE | Fig 602 (F×M×M) | |||||
| 3" Fig 602, 6,000 psi, M × F × F, NACE | 3″ | 428 | 214 | Fig 602 (M×F×F) | ||
| 3" Fig 602, 6,000 psi, M × F × M, NACE | Fig 602 (M×F×M) | |||||
| 3" Fig 602, 6,000 psi, F × M × F, NACE | Fig 602 (F×M×F) | |||||
| 3" Fig 602, 6,000 psi, F × F × F, NACE | Fig 602 (F×F×F) | |||||
| 3" Fig 602, 6,000 psi, M × M × M, NACE | Fig 602 (M×M×M) | |||||
| 3" Fig 602, 6,000 psi, F × M × M, NACE | Fig 602 (F×M×M) | |||||
| 4" Fig 602, 6,000 psi, M × F × F, NACE | 4″ | 428 | 214 | Fig 602 (M×F×F) | ||
| 4" Fig 602, 6,000 psi, M × F × M, NACE | Fig 602 (M×F×M) | |||||
| 4" Fig 602, 6,000 psi, F × M × F, NACE | Fig 602 (F×M×F) | |||||
| 4" Fig 602, 6,000 psi, F × F × F, NACE | Fig 602 (F×F×F) | |||||
| 4" Fig 602, 6,000 psi, M × M × M, NACE | Fig 602 (M×M×M) | |||||
| 4" Fig 602, 6,000 psi, F × M × M, NACE | Fig 602 (F×M×M) | |||||
| 2" Fig 1002, 7,500 psi, M × F × F, NACE | 2″ | 7,500 psi | 308 | 154 | Fig 1002 (M×F×F) | |
| 2" Fig 1002, 7,500 psi, M × F × M, NACE | Fig 1002 (M×F×M) | |||||
| 2" Fig 1002, 7,500 psi, F × M × F, NACE | Fig 1002 (F×M×F) | |||||
| 2" Fig 1002, 7,500 psi, F × F × F, NACE | Fig 1002 (F×F×F) | |||||
| 2" Fig 1002, 7,500 psi, M × M × M, NACE | Fig 1002 (M×M×M) | |||||
| 2" Fig 1002, 7,500 psi, F × M × M, NACE | Fig 1002 (F×M×M) | |||||
| 3" Fig 1002, 7,500 psi, M × F × F, NACE | 3″ | 428 | 214 | Fig 1002 (M×F×F) | ||
| 3" Fig 1002, 7,500 psi, M × F × M, NACE | Fig 1002 (M×F×M) | |||||
| 3" Fig 1002, 7,500 psi, F × M × F, NACE | Fig 1002 (F×M×F) | |||||
| 3" Fig 1002, 7,500 psi, F × F × F, NACE | Fig 1002 (F×F×F) | |||||
| 3" Fig 1002, 7,500 psi, M × M × M, NACE | Fig 1002 (M×M×M) | |||||
| 3" Fig 1002, 7,500 psi, F × M × M, NACE | Fig 1002 (F×M×M) | |||||
| 4" Fig 1002, 7,500 psi, M × F × F, NACE | 4″ | 428 | 214 | Fig 1002 (M×F×F) | ||
| 4" Fig 1002, 7,500 psi, M × F × M, NACE | Fig 1002 (M×F×M) | |||||
| 4" Fig 1002, 7,500 psi, F × M × F, NACE | Fig 1002 (F×M×F) | |||||
| 4" Fig 1002, 7,500 psi, F × F × F, NACE | Fig 1002 (F×F×F) | |||||
| 4" Fig 1002, 7,500 psi, M × M × M, NACE | Fig 1002 (M×M×M) | |||||
| 4" Fig 1002, 7,500 psi, F × M × M, NACE | Fig 1002 (F×M×M) | |||||
| 2" Fig 1502, 10,000 psi, M × F × F, NACE | 2″ | 10,000 psi | 308 | 154 | Fig 1502 (M×F×F) | |
| 2" Fig 1502, 10,000 psi, M × F × M, NACE | Fig 1502 (M×F×M) | |||||
| 2" Fig 1502, 10,000 psi, F × M × F, NACE | Fig 1502 (F×M×F) | |||||
| 2" Fig 1502, 10,000 psi, F × F × F, NACE | Fig 1502 (F×F×F) | |||||
| 2" Fig 1502, 10,000 psi, M × M × M, NACE | Fig 1502 (M×M×M) | |||||
| 2" Fig 1502, 10,000 psi, F × M × M, NACE | Fig 1502 (F×M×M) | |||||
| 3" Fig 1502, 10,000 psi, M × F × F, NACE | 3″ | 428 | 214 | Fig 1502 (M×F×F) | ||
| 3" Fig 1502, 10,000 psi, M × F × M, NACE | Fig 1502 (M×F×M) | |||||
| 3" Fig 1502, 10,000 psi, F × M × F, NACE | Fig 1502 (F×M×F) | |||||
| 3" Fig 1502, 10,000 psi, F × F × F, NACE | Fig 1502 (F×F×F) | |||||
| 3" Fig 1502, 10,000 psi, M × M × M, NACE | Fig 1502 (M×M×M) | |||||
| 3" Fig 1502, 10,000 psi, F × M × M, NACE | Fig 1502 (F×M×M) | |||||
| 4" Fig 1502, 10,000 psi, M × F × F, NACE | 4″ | 428 | 214 | Fig 1502 (M×F×F) | ||
| 4" Fig 1502, 10,000 psi, M × F × M, NACE | Fig 1502 (M×F×M) | |||||
| 4" Fig 1502, 10,000 psi, F × M × F, NACE | Fig 1502 (F×M×F) | |||||
| 4" Fig 1502, 10,000 psi, F × F × F, NACE | Fig 1502 (F×F×F) | |||||
| 4" Fig 1502, 10,000 psi, M × M × M, NACE | Fig 1502 (M×M×M) | |||||
| 4" Fig 1502, 10,000 psi, F × M × M, NACE | Fig 1502 (F×M×M) | |||||
| 2" Fig 2202, 15,000 psi, M × F × F, NACE | 2″ | 15,000 psi | 346 | 185 | Fig 2202 (M×F×F) | |
| 2" Fig 2202, 15,000 psi, M × F × M, NACE | Fig 2202 (M×F×M) | |||||
| 2" Fig 2202, 15,000 psi, F × M × F, NACE | Fig 2202 (F×M×F) | |||||
| 2" Fig 2202, 15,000 psi, F × F × F, NACE | Fig 2202 (F×F×F) | |||||
| 2" Fig 2202, 15,000 psi, M × M × M, NACE | Fig 2202 (M×M×M) | |||||
| 2" Fig 2202, 15,000 psi, F × M × M, NACE | Fig 2202 (F×M×M) | |||||
| 3" Fig 2202, 15,000 psi, M × F × F, NACE | 3″ | 533 | 266.5 | Fig 2202 (M×F×F) | ||
| 3" Fig 2202, 15,000 psi, M × F × M, NACE | Fig 2202 (M×F×M) | |||||
| 3" Fig 2202, 15,000 psi, F × M × F, NACE | Fig 2202 (F×M×F) | |||||
| 3" Fig 2202, 15,000 psi, F × F × F, NACE | Fig 2202 (F×F×F) | |||||
| 3" Fig 2202, 15,000 psi, M × M × M, NACE | Fig 2202 (M×M×M) | |||||
| 3" Fig 2202, 15,000 psi, F × M × M, NACE | Fig 2202 (F×M×M) | |||||

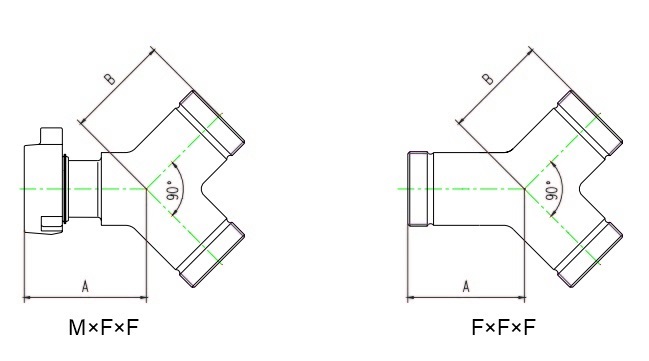

| Integral Y Tee | ||||||
|---|---|---|---|---|---|---|
| Model | Nominal Size | Cold Working Pressure | Overall Dimensions (mm) | Connection Type | Service | |
| A | B | |||||
| 2" Fig 602, 6,000 psi, M × F × F | 2″ | 6,000 psi | 133 | 127 | Fig 602 (M×F×F) | Standard |
| 2" Fig 602, 6,000 psi, F × F × F | Fig 602 (F×F×F) | |||||
| 3" Fig 602, 6,000 psi, M × F × F | 3″ | 197 | 190 | Fig 602 (M×F×F) | ||
| 3" Fig 602, 6,000 psi, F × F × F | Fig 602 (F×F×F) | |||||
| 4" Fig 602, 6,000 psi, M × F × F | 4″ | 197 | 197 | Fig 602 (M×F×F) | ||
| 4" Fig 602, 6,000 psi, F × F × F | Fig 602 (F×F×F) | |||||
| 2" Fig 1002, 10,000 psi, M × F × F | 2″ | 10,000 psi | 133 | 127 | Fig 1002 (M×F×F) | |
| 2" Fig 1002, 10,000 psi, F × F × F | Fig 1002 (F×F×F) | |||||
| 3" Fig 1002, 10,000 psi, M × F × F | 3″ | 197 | 190 | Fig 1002 (M×F×F) | ||
| 3" Fig 1002, 10,000 psi, F × F × F | Fig 1002 (F×F×F) | |||||
| 4" Fig 1002, 10,000 psi, M × F × F | 4″ | 197 | 197 | Fig 1002 (M×F×F) | ||
| 4" Fig 1002, 10,000 psi, F × F × F | Fig 1002 (F×F×F) | |||||
| 2" Fig 1502, 15,000 psi, M × F × F | 2″ | 15,000 psi | 133 | 127 | Fig 1502 (M×F×F) | |
| 2" Fig 1502, 15,000 psi, F × F × F | Fig 1502 (F×F×F) | |||||
| 3" Fig 1502, 15,000 psi, M × F × F | 3″ | 197 | 190 | Fig 1502 (M×F×F) | ||
| 3" Fig 1502, 15,000 psi, F × F × F | Fig 1502 (F×F×F) | |||||
| 4" Fig 1502, 15,000 psi, M × F × F | 4″ | 250 | 240 | Fig 1502 (M×F×F) | ||
| 4" Fig 1502, 15,000 psi, F × F × F | Fig 1502 (F×F×F) | |||||
| 2" Fig 2002, 20,000 psi, M × F × F | 2″ | 20,000 psi | 148 | 127 | Fig 2002 (M×F×F) | |
| 2" Fig 2002, 20,000 psi, F × F × F | Fig 2002 (F×F×F) | |||||
| 3" Fig 2002, 20,000 psi, M × F × F | 3″ | 270 | 270 | Fig 2002 (M×F×F) | ||
| 3" Fig 2002, 20,000 psi, F × F × F | Fig 2002 (F×F×F) | |||||
| H2S Service | ||||||
| 2" Fig 602, 6,000 psi, M × F × F, NACE | 2″ | 6,000 psi | 133 | 127 | Fig 602 (M×F×F) | H2S |
| 2" Fig 602, 6,000 psi, F × F × F, NACE | Fig 602 (F×F×F) | |||||
| 3" Fig 602, 6,000 psi, M × F × F, NACE | 3″ | 197 | 190 | Fig 602 (M×F×F) | ||
| 3" Fig 602, 6,000 psi, F × F × F, NACE | Fig 602 (F×F×F) | |||||
| 4" Fig 602, 6,000 psi, M × F × F, NACE | 4″ | 197 | 197 | Fig 602 (M×F×F) | ||
| 4" Fig 602, 6,000 psi, F × F × F, NACE | Fig 602 (F×F×F) | |||||
| 2" Fig 1002, 7,500 psi, M × F × F, NACE | 2″ | 7,500 psi | 133 | 127 | Fig 1002 (M×F×F) | |
| 2" Fig 1002, 7,500 psi, F × F × F, NACE | Fig 1002 (F×F×F) | |||||
| 3" Fig 1002, 7,500 psi, M × F × F, NACE | 3″ | 197 | 190 | Fig 1002 (M×F×F) | ||
| 3" Fig 1002, 7,500 psi, F × F × F, NACE | Fig 1002 (F×F×F) | |||||
| 4" Fig 1002, 7,500 psi, M × F × F, NACE | 4″ | 197 | 197 | Fig 1002 (M×F×F) | ||
| 4" Fig 1002, 7,500 psi, F × F × F, NACE | Fig 1002 (F×F×F) | |||||
| 2" Fig 1502, 10,000 psi, M × F × F, NACE | 2″ | 10,000 psi | 133 | 127 | Fig 1502 (M×F×F) | |
| 2" Fig 1502, 10,000 psi, F × F × F, NACE | Fig 1502 (F×F×F) | |||||
| 3" Fig 1502, 10,000 psi, M × F × F, NACE | 3″ | 197 | 190 | Fig 1502 (M×F×F) | ||
| 3" Fig 1502, 10,000 psi, F × F × F, NACE | Fig 1502 (F×F×F) | |||||
| 4" Fig 1502, 10,000 psi, M × F × F, NACE | 4″ | 250 | 240 | Fig 1502 (M×F×F) | ||
| 4" Fig 1502, 10,000 psi, F × F × F, NACE | Fig 1502 (F×F×F) | |||||

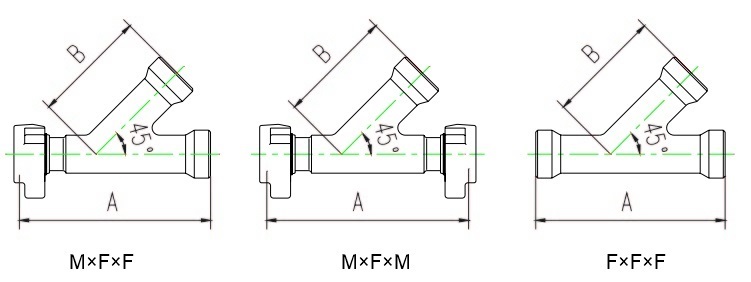

| Integral 45° Lateral Tee | ||||||
|---|---|---|---|---|---|---|
| Model | Nominal Size | Cold Working Pressure | Overall Dimensions (mm) | Connection Type | Service | |
| A | B | |||||
| 2" Fig 602, 6,000 psi, M × F × F | 2″ | 6,000 psi | 400 | 250 | Fig 602 (M×F×F) | Standard |
| 2" Fig 602, 6,000 psi, M × F × M | Fig 602 (M×F×M) | |||||
| 2" Fig 602, 6,000 psi, F × F × F | Fig 602 (F×F×F) | |||||
| 3" Fig 602, 6,000 psi, M × F × F | 3″ | 533 | 355 | Fig 602 (M×F×F) | ||
| 3" Fig 602, 6,000 psi, M × F × M | Fig 602 (M×F×M) | |||||
| 3" Fig 602, 6,000 psi, F × F × F | Fig 602 (F×F×F) | |||||
| 4" Fig 602, 6,000 psi, M × F × F | 4″ | 533 | 355 | Fig 602 (M×F×F) | ||
| 4" Fig 602, 6,000 psi, M × F × M | Fig 602 (M×F×M) | |||||
| 4" Fig 602, 6,000 psi, F × F × F | Fig 602 (F×F×F) | |||||
| 2" Fig 1002, 10,000 psi, M × F × F | 2″ | 10,000 psi | 400 | 250 | Fig 1002 (M×F×F) | |
| 2" Fig 1002, 10,000 psi, M × F × M | Fig 1002 (M×F×M) | |||||
| 2" Fig 1002, 10,000 psi, F × F × F | Fig 1002 (F×F×F) | |||||
| 3" Fig 1002, 10,000 psi, M × F × F | 3″ | 533 | 355 | Fig 1002 (M×F×F) | ||
| 3" Fig 1002, 10,000 psi, M × F × M | Fig 1002 (M×F×M) | |||||
| 3" Fig 1002, 10,000 psi, F × F × F | Fig 1002 (F×F×F) | |||||
| 4" Fig 1002, 10,000 psi, M × F × F | 4″ | 533 | 355 | Fig 1002 (M×F×F) | ||
| 4" Fig 1002, 10,000 psi, M × F × M | Fig 1002 (M×F×M) | |||||
| 4" Fig 1002, 10,000 psi, F × F × F | Fig 1002 (F×F×F) | |||||
| 2" Fig 1502, 15,000 psi, M × F × F | 2″ | 15,000 psi | 400 | 250 | Fig 1502 (M×F×F) | |
| 2" Fig 1502, 15,000 psi, M × F × M | Fig 1502 (M×F×M) | |||||
| 2" Fig 1502, 15,000 psi, F × F × F | Fig 1502 (F×F×F) | |||||
| 3" Fig 1502, 15,000 psi, M × F × F | 3″ | 533 | 355 | Fig 1502 (M×F×F) | ||
| 3" Fig 1502, 15,000 psi, M × F × M | Fig 1502 (M×F×M) | |||||
| 3" Fig 1502, 15,000 psi, F × F × F | Fig 1502 (F×F×F) | |||||
| 4" Fig 1502, 15,000 psi, M × F × F | 4″ | 533 | 355 | Fig 1502 (M×F×F) | ||
| 4" Fig 1502, 15,000 psi, M × F × M | Fig 1502 (M×F×M) | |||||
| 4" Fig 1502, 15,000 psi, F × F × F | Fig 1502 (F×F×F) | |||||
| 3" Fig 2002, 20,000 psi, M × F × F | 3″ | 20,000 psi | 533 | 350 | Fig 2002 (M×F×F) | |
| 3" Fig 2002, 20,000 psi, M × F × M | Fig 2002 (M×F×M) | |||||
| 3" Fig 2002, 20,000 psi, F × F × F | Fig 2002 (F×F×F) | |||||
| H2S Service | ||||||
| 2" Fig 602, 6,000 psi, M × F × F, NACE | 2″ | 6,000 psi | 400 | 250 | Fig 602 (M×F×F) | H2S |
| 2" Fig 602, 6,000 psi, M × F × M, NACE | Fig 602 (M×F×M) | |||||
| 2" Fig 602, 6,000 psi, F × F × F, NACE | Fig 602 (F×F×F) | |||||
| 3" Fig 602, 6,000 psi, M × F × F, NACE | 3″ | 533 | 355 | Fig 602 (M×F×F) | ||
| 3" Fig 602, 6,000 psi, M × F × M, NACE | Fig 602 (M×F×M) | |||||
| 3" Fig 602, 6,000 psi, F × F × F, NACE | Fig 602 (F×F×F) | |||||
| 4" Fig 602, 6,000 psi, M × F × F, NACE | 4″ | 533 | 355 | Fig 602 (M×F×F) | ||
| 4" Fig 602, 6,000 psi, M × F × M, NACE | Fig 602 (M×F×M) | |||||
| 4" Fig 602, 6,000 psi, F × F × F, NACE | Fig 602 (F×F×F) | |||||
| 2" Fig 1002, 7,500 psi, M × F × F, NACE | 2″ | 7,500 psi | 400 | 250 | Fig 1002 (M×F×F) | |
| 2" Fig 1002, 7,500 psi, M × F × M, NACE | Fig 1002 (M×F×M) | |||||
| 2" Fig 1002, 7,500 psi, F × F × F, NACE | Fig 1002 (F×F×F) | |||||
| 3" Fig 1002, 7,500 psi, M × F × F, NACE | 3″ | 533 | 355 | Fig 1002 (M×F×F) | ||
| 3" Fig 1002, 7,500 psi, M × F × M, NACE | Fig 1002 (M×F×M) | |||||
| 3" Fig 1002, 7,500 psi, F × F × F, NACE | Fig 1002 (F×F×F) | |||||
| 4" Fig 1002, 7,500 psi, M × F × F, NACE | 4″ | 533 | 355 | Fig 1002 (M×F×F) | ||
| 4" Fig 1002, 7,500 psi, M × F × M, NACE | Fig 1002 (M×F×M) | |||||
| 4" Fig 1002, 7,500 psi, F × F × F, NACE | Fig 1002 (F×F×F) | |||||
| 2" Fig 1502, 10,000 psi, M × F × F, NACE | 2″ | 10,000 psi | 400 | 250 | Fig 1502 (M×F×F) | |
| 2" Fig 1502, 10,000 psi, M × F × M, NACE | Fig 1502 (M×F×M) | |||||
| 2" Fig 1502, 10,000 psi, F × F × F, NACE | Fig 1502 (F×F×F) | |||||
| 3" Fig 1502, 10,000 psi, M × F × F, NACE | 3″ | 533 | 355 | Fig 1502 (M×F×F) | ||
| 3" Fig 1502, 10,000 psi, M × F × M, NACE | Fig 1502 (M×F×M) | |||||
| 3" Fig 1502, 10,000 psi, F × F × F, NACE | Fig 1502 (F×F×F) | |||||
| 4" Fig 1502, 10,000 psi, M × F × F, NACE | 4″ | 533 | 355 | Fig 1502 (M×F×F) | ||
| 4" Fig 1502, 10,000 psi, M × F × M, NACE | Fig 1502 (M×F×M) | |||||
| 4" Fig 1502, 10,000 psi, F × F × F, NACE | Fig 1502 (F×F×F) | |||||
Note: The included angle at the 20,000 psi manifold section is 60 degrees.

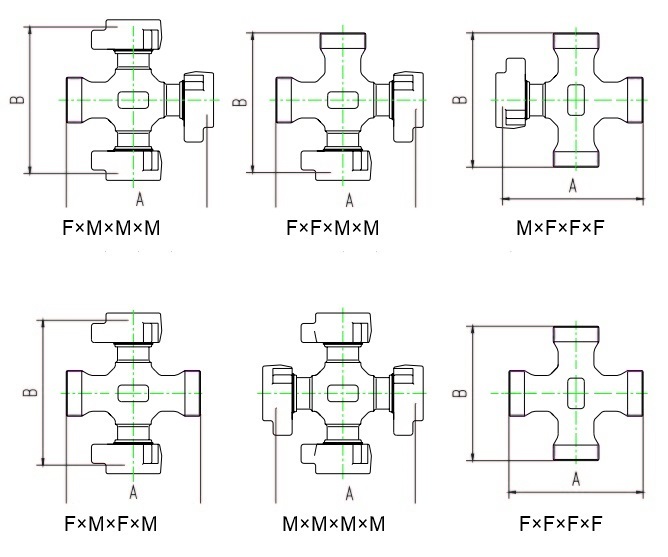

| Integral Cross | ||||||
|---|---|---|---|---|---|---|
| Model | Nominal Size | Cold Working Pressure | Overall Dimensions (mm) | Connection Type | Service | |
| A | B | |||||
| 2" Fig 602, 6,000 psi, F × M × M × M | 2″ | 6,000 psi | 308 | 308 | Fig 602 (F×M×M×M) | Standard |
| 2" Fig 602, 6,000 psi, F × F × M × M | Fig 602 (F×F×M×M) | |||||
| 2" Fig 602, 6,000 psi, M × F × F × F | Fig 602 (M×F×F×F) | |||||
| 2" Fig 602, 6,000 psi, F × M × F × M | Fig 602 (F×M×F×M) | |||||
| 2" Fig 602, 6,000 psi, M × M × M × M | Fig 602 (M×M×M×M) | |||||
| 2" Fig 602, 6,000 psi, F × F × F × F | Fig 602 (F×F×F×F) | |||||
| 3" Fig 602, 6,000 psi, F × M × M × M | 3″ | 428 | 428 | Fig 602 (F×M×M×M) | ||
| 3" Fig 602, 6,000 psi, F × F × M × M | Fig 602 (F×F×M×M) | |||||
| 3" Fig 602, 6,000 psi, M × F × F × F | Fig 602 (M×F×F×F) | |||||
| 3" Fig 602, 6,000 psi, F × M × F × M | Fig 602 (F×M×F×M) | |||||
| 4" Fig 602, 6,000 psi, F × M × M × M | 4″ | 428 | 428 | Fig 602 (F×M×M×M) | ||
| 4" Fig 602, 6,000 psi, F × F × M × M | Fig 602 (F×F×M×M) | |||||
| 4" Fig 602, 6,000 psi, M × F × F × F | Fig 602 (M×F×F×F) | |||||
| 4" Fig 602, 6,000 psi, F × M × F × M | Fig 602 (F×M×F×M) | |||||
| 2" Fig 1002, 10,000 psi, F × M × M × M | 2″ | 10,000 psi | 308 | 308 | Fig 1002 (F×M×M×M) | |
| 2" Fig 1002, 10,000 psi, F × F × M × M | Fig 1002 (F×F×M×M) | |||||
| 2" Fig 1002, 10,000 psi, M × F × F × F | Fig 1002 (M×F×F×F) | |||||
| 2" Fig 1002, 10,000 psi, F × M × F × M | Fig 1002 (F×M×F×M) | |||||
| 2" Fig 1002, 10,000 psi, M × M × M × M | Fig 1002 (M×M×M×M) | |||||
| 3" Fig 1002, 10,000 psi, F × M × M × M | 3″ | 428 | 428 | Fig 1002 (F×M×M×M) | ||
| 3" Fig 1002, 10,000 psi, F × F × M × M | Fig 1002 (F×F×M×M) | |||||
| 3" Fig 1002, 10,000 psi, M × F × F × F | Fig 1002 (M×F×F×F) | |||||
| 3" Fig 1002, 10,000 psi, F × M × F × M | Fig 1002 (F×M×F×M) | |||||
| 4" Fig 1002, 10,000 psi, F × M × M × M | 4″ | 428 | 428 | Fig 1002 (F×M×M×M) | ||
| 4" Fig 1002, 10,000 psi, F × F × M × M | Fig 1002 (F×F×M×M) | |||||
| 4" Fig 1002, 10,000 psi, M × F × F × F | Fig 1002 (M×F×F×F) | |||||
| 4" Fig 1002, 10,000 psi, F × M × F × M | Fig 1002 (F×M×F×M) | |||||
| 2" Fig 1502, 15,000 psi, F × M × M × M | 2″ | 15,000 psi | 308 | 308 | Fig 1502 (F×M×M×M) | |
| 2" Fig 1502, 15,000 psi, F × F × M × M | Fig 1502 (F×F×M×M) | |||||
| 2" Fig 1502, 15,000 psi, M × F × F × F | Fig 1502 (M×F×F×F) | |||||
| 2" Fig 1502, 15,000 psi, F × M × F × M | Fig 1502 (F×M×F×M) | |||||
| 2" Fig 1502, 15,000 psi, F × F × F × F | Fig 1502 (F×F×F×F) | |||||
| 3" Fig 1502, 15,000 psi, F × M × M × M | 3″ | 428 | 428 | Fig 1502 (F×M×M×M) | ||
| 3" Fig 1502, 15,000 psi, F × F × M × M | Fig 1502 (F×F×M×M) | |||||
| 3" Fig 1502, 15,000 psi, M × F × F × F | Fig 1502 (M×F×F×F) | |||||
| 3" Fig 1502, 15,000 psi, F × M × F × M | Fig 1502 (F×M×F×M) | |||||
| 4" Fig 1502, 15,000 psi, F × M × M × M | 4″ | 428 | 428 | Fig 1502 (F×M×M×M) | ||
| 4" Fig 1502, 15,000 psi, F × F × M × M | Fig 1502 (F×F×M×M) | |||||
| 4" Fig 1502, 15,000 psi, M × F × F × F | Fig 1502 (M×F×F×F) | |||||
| 4" Fig 1502, 15,000 psi, F × M × F × M | Fig 1502 (F×M×F×M) | |||||
| 2" Fig 2002, 20,000 psi, F × M × M × M | 2″ | 20,000 psi | 346 | 346 | Fig 2002 (F×M×M×M) | |
| 2" Fig 2002, 20,000 psi, F × F × M × M | Fig 2002 (F×F×M×M) | |||||
| 2" Fig 2002, 20,000 psi, M × F × F × F | Fig 2002 (M×F×F×F) | |||||
| 2" Fig 2002, 20,000 psi, F × M × F × M | Fig 2002 (F×M×F×M) | |||||
| 3" Fig 2002, 20,000 psi, F × M × M × M | 3″ | 533 | 533 | Fig 2002 (F×M×M×M) | ||
| 3" Fig 2002, 20,000 psi, F × F × M × M | Fig 2002 (F×F×M×M) | |||||
| 3" Fig 2002, 20,000 psi, M × F × F × F | Fig 2002 (M×F×F×F) | |||||
| 3" Fig 2002, 20,000 psi, F × M × F × M | Fig 2002 (F×M×F×M) | |||||
| H2S Service | ||||||
| 2" Fig 602, 6,000 psi, F × M × M × M, NACE | 2″ | 6,000 psi | 308 | 308 | Fig 602 (F×M×M×M) | H2S |
| 2" Fig 602, 6,000 psi, F × F × M × M, NACE | Fig 602 (F×F×M×M) | |||||
| 2" Fig 602, 6,000 psi, M × F × F × F, NACE | Fig 602 (M×F×F×F) | |||||
| 2" Fig 602, 6,000 psi, F × M × F × M, NACE | Fig 602 (F×M×F×M) | |||||
| 3" Fig 602, 6,000 psi, F × M × M × M, NACE | 3″ | 428 | 428 | Fig 602 (F×M×M×M) | ||
| 3" Fig 602, 6,000 psi, F × F × M × M, NACE | Fig 602 (F×F×M×M) | |||||
| 3" Fig 602, 6,000 psi, M × F × F × F, NACE | Fig 602 (M×F×F×F) | |||||
| 3" Fig 602, 6,000 psi, F × M × F × M, NACE | Fig 602 (F×M×F×M) | |||||
| 4" Fig 602, 6,000 psi, F × M × M × M, NACE | 4″ | 428 | 428 | Fig 602 (F×M×M×M) | ||
| 4" Fig 602, 6,000 psi, F × F × M × M, NACE | Fig 602 (F×F×M×M) | |||||
| 4" Fig 602, 6,000 psi, M × F × F × F, NACE | Fig 602 (M×F×F×F) | |||||
| 4" Fig 602, 6,000 psi, F × M × F × M, NACE | Fig 602 (F×M×F×M) | |||||
| 2" Fig 1002, 7,500 psi, F × M × M × M, NACE | 2″ | 7,500 psi | 308 | 308 | Fig 1002 (F×M×M×M) | |
| 2" Fig 1002, 7,500 psi, F × F × M × M, NACE | Fig 1002 (F×F×M×M) | |||||
| 2" Fig 1002, 7,500 psi, M × F × F × F, NACE | Fig 1002 (M×F×F×F) | |||||
| 2" Fig 1002, 7,500 psi, F × F × F × F, NACE | Fig 1002 (F×F×F×F) | |||||
| 3" Fig 1002, 7,500 psi, F × M × M × M, NACE | 3″ | 428 | 428 | Fig 1002 (F×M×M×M) | ||
| 3" Fig 1002, 7,500 psi, F × F × M × M, NACE | Fig 1002 (F×F×M×M) | |||||
| 3" Fig 1002, 7,500 psi, M × F × F × F, NACE | Fig 1002 (M×F×F×F) | |||||
| 3" Fig 1002, 7,500 psi, F × M × F × M, NACE | Fig 1002 (F×M×F×M) | |||||
| 4" Fig 1002, 7,500 psi, F × M × M × M, NACE | 4″ | 428 | 428 | Fig 1002 (F×M×M×M) | ||
| 4" Fig 1002, 7,500 psi, F × F × M × M, NACE | Fig 1002 (F×F×M×M) | |||||
| 4" Fig 1002, 7,500 psi, M × F × F × F, NACE | Fig 1002 (M×F×F×F) | |||||
| 4" Fig 1002, 7,500 psi, F × M × F × M, NACE | Fig 1002 (F×M×F×M) | |||||
| 2" Fig 1502, 10,000 psi, F × M × M × M, NACE | 2″ | 10,000 psi | 308 | 308 | Fig 1502 (F×M×M×M) | |
| 2" Fig 1502, 10,000 psi, F × F × M × M, NACE | Fig 1502 (F×F×M×M) | |||||
| 2" Fig 1502, 10,000 psi, M × F × F × F, NACE | Fig 1502 (M×F×F×F) | |||||
| 2" Fig 1502, 10,000 psi, F × M × F × M, NACE | Fig 1502 (F×M×F×M) | |||||
| 3" Fig 1502, 10,000 psi, F × M × M × M, NACE | 3″ | 428 | 428 | Fig 1502 (F×M×M×M) | ||
| 3" Fig 1502, 10,000 psi, F × F × M × M, NACE | Fig 1502 (F×F×M×M) | |||||
| 3" Fig 1502, 10,000 psi, M × F × F × F, NACE | Fig 1502 (M×F×F×F) | |||||
| 3" Fig 1502, 10,000 psi, F × M × F × M, NACE | Fig 1502 (F×M×F×M) | |||||
| 4" Fig 1502, 10,000 psi, F × M × M × M, NACE | 4″ | 428 | 428 | Fig 1502 (F×M×M×M) | ||
| 4" Fig 1502, 10,000 psi, F × F × M × M, NACE | Fig 1502 (F×F×M×M) | |||||
| 4" Fig 1502, 10,000 psi, M × F × F × F, NACE | Fig 1502 (M×F×F×F) | |||||
| 4" Fig 1502, 10,000 psi, F × M × F × M, NACE | Fig 1502 (F×M×F×M) | |||||
| 2" Fig 2202, 15,000 psi, F × M × M × M, NACE | 2″ | 15,000 psi | 346 | 346 | Fig 2202 (F×M×M×M) | |
| 2" Fig 2202, 15,000 psi, F × F × M × M, NACE | Fig 2202 (F×F×M×M) | |||||
| 2" Fig 2202, 15,000 psi, M × F × F × F, NACE | Fig 2202 (M×F×F×F) | |||||
| 2" Fig 2202, 15,000 psi, F × M × F × M, NACE | Fig 2202 (F×M×F×M) | |||||
| 3" Fig 2202, 15,000 psi, F × M × M × M, NACE | 3″ | 533 | 533 | Fig 2202 (F×M×M×M) | ||
| 3" Fig 2202, 15,000 psi, F × F × M × M, NACE | Fig 2202 (F×F×M×M) | |||||
| 3" Fig 2202, 15,000 psi, M × F × F × F, NACE | Fig 2202 (M×F×F×F) | |||||
| 3" Fig 2202, 15,000 psi, F × M × F × M, NACE | Fig 2202 (F×M×F×M) | |||||

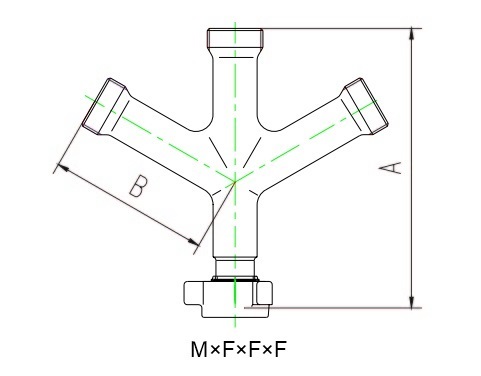

| Integral Double 45° Lateral Tee | ||||||
|---|---|---|---|---|---|---|
| Model | Nominal Size | Cold Working Pressure | Overall Dimensions (mm) | Connection Type | Service | |
| A | B | |||||
| 2" Fig 602, 6,000 psi, M × F × F × F | 2″ | 6,000 psi | 513 | 303 | Fig 602 (M×F×F×F) | Standard |
| 3" Fig 602, 6,000 psi, M × F × F × F | 3″ | 533 | 355 | Fig 602 (M×F×F×F) | ||
| 4" Fig 602, 6,000 psi, M × F × F × F | 4″ | 533 | 355 | Fig 602 (M×F×F×F) | ||
| 2" Fig 1002, 10,000 psi, M × F × F × F | 2″ | 10,000 psi | 513 | 303 | Fig 1002 (M×F×F×F) | |
| 3" Fig 1002, 10,000 psi, M × F × F × F | 3″ | 533 | 355 | Fig 1002 (M×F×F×F) | ||
| 4" Fig 1002, 10,000 psi, M × F × F × F | 4″ | 533 | 355 | Fig 1002 (M×F×F×F) | ||
| 2" Fig 1502, 15,000 psi, M × F × F × F | 2″ | 15,000 psi | 513 | 303 | Fig 1502 (M×F×F×F) | |
| 3" Fig 1502, 15,000 psi, M × F × F × F | 3″ | 533 | 355 | Fig 1502 (M×F×F×F) | ||
| 4" Fig 1502, 15,000 psi, M × F × F × F | 4″ | 533 | 355 | Fig 1502 (M×F×F×F) | ||
| 2" Fig 2002, 20,000 psi, M × F × F × F | 2″ | 20,000 psi | 370 | 185 | Fig 2002 (M×F×F×F) | |
| 3" Fig 2002, 20,000 psi, M × F × F × F | 3″ | 533 | 350 | Fig 2002 (M×F×F×F) | ||

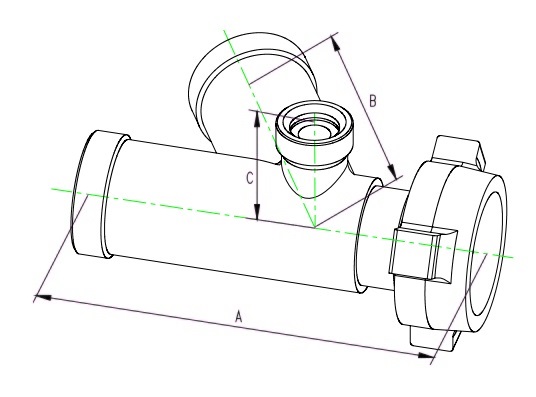

| Integral 45° Lateral Tee with Pressure Gauge Port | |||||||
|---|---|---|---|---|---|---|---|
| Model | Nominal Size | Cold Working Pressure | Overall Dimensions (mm) | Connection Type | Service | ||
| A | B | C (signed offset) | |||||
| 2" Fig 1502, 15,000 psi | 2″ | 15,000 psi | 400 | 250 | 120 | Fig 1502 | Standard |
| 3" Fig 1502, 15,000 psi | 3″ | 533 | 356 | 150 | |||
| 3" Fig 1502, 15,000 psi | 3″ | 533 | 356 | −150 | |||
| 4" Fig 1502, 15,000 psi | 4″ | 533 | 356 | 150 | |||
| 3" Fig 2002, 20,000 psi | 3″ | 20,000 psi | 533 | 350 | 181 | Fig 2002 | |
| 3" Fig 2002, 20,000 psi | 3″ | 533 | 350 | −181 | |||
| Pressure gauge connection: 2″ Fig 1502 | |||||||
Positive and negative C values identify opposite pressure-gauge-port offsets; confirm the required orientation from the dimensional drawing.

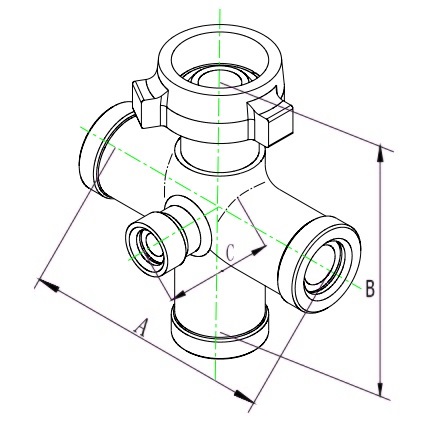

| Integral Cross with Pressure Gauge Port | |||||||
|---|---|---|---|---|---|---|---|
| Model | Nominal Size | Cold Working Pressure | Overall Dimensions (mm) | Connection Type | Service | ||
| A | B | C | |||||
| 2" Fig 1502, 15,000 psi | 2″ | 15,000 psi | 308 | 308 | 120 | Fig 1502 | Standard |
| 3" Fig 1502, 15,000 psi | 3″ | 428 | 428 | 150 | |||
| 4" Fig 1502, 15,000 psi | 4″ | 428 | 428 | 150 | |||
| 3" Fig 2002, 20,000 psi | 3″ | 20,000 psi | 533 | 533 | 181 | Fig 2002 | |
| Pressure gauge connection: 2″ Fig 1502 | |||||||

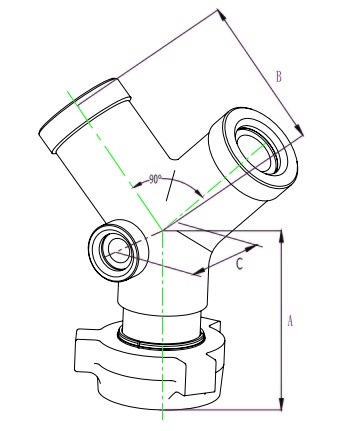

| Integral Y Tee with Pressure Gauge Port | |||||||
|---|---|---|---|---|---|---|---|
| Model | Nominal Size | Cold Working Pressure | Overall Dimensions (mm) | Connection Type | Service | ||
| A | B | C | |||||
| 2" Fig 1502, 15,000 psi | 2″ | 15,000 psi | 133 | 127 | 120 | Fig 1502 | Standard |
| 3" Fig 1502, 15,000 psi | 3″ | 197 | 190 | 150 | |||
| 4" Fig 1502, 15,000 psi | 4″ | 197 | 190 | 150 | |||
| 3" Fig 2002, 20,000 psi | 3″ | 20,000 psi | 270 | 270 | 181 | Fig 2002 | |
| Pressure gauge connection: 2″ Fig 1502 | |||||||

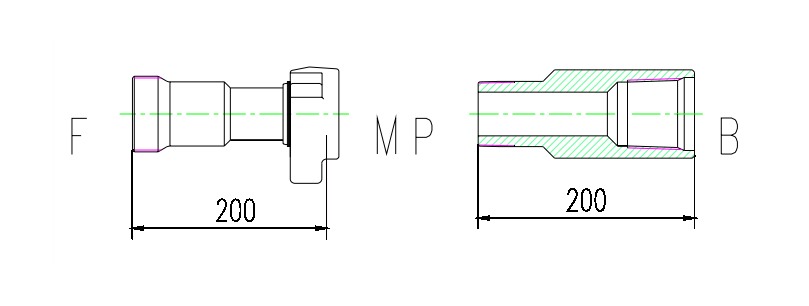

| Crossover Adapter | |||
|---|---|---|---|
| Model | End Connection Type | Rated Working Pressure | |
| Standard Service | H2S service | ||
| 2" Fig 602, 6,000 psi, F /2" Fig 602, 6,000 psi, F, NACE | 2″ Fig 602F | 6,000 psi | 6,000 psi |
| 2" Fig 602, 6,000 psi, M /2" Fig 602, 6,000 psi, M, NACE | 2″ Fig 602M | 6,000 psi | 6,000 psi |
| 2" Fig 1002, 10,000 psi, F /2" Fig 1002, 7,500 psi, F, NACE | 2″ Fig 1002F | 10,000 psi | 7,500 psi |
| 2" Fig 1002, 10,000 psi, M /2" Fig 1002, 7,500 psi, M, NACE | 2″ Fig 1002M | 10,000 psi | 7,500 psi |
| 2" Fig 1003, 10,000 psi, F | 2″ Fig 1003F | 10,000 psi | |
| 2" Fig 1003, 10,000 psi, M | 2″ Fig 1003M | 10,000 psi | |
| 2" Fig 1502, 15,000 psi, F /2" Fig 1502, 10,000 psi, F, NACE | 2″ Fig 1502F | 15,000 psi | 10,000 psi |
| 2" Fig 1502, 15,000 psi, M /2" Fig 1502, 10,000 psi, M, NACE | 2″ Fig 1502M | 15,000 psi | 10,000 psi |
| 2" Fig 2002, 20,000 psi, F | 2″ Fig 2002F | 20,000 psi | |
| 2" Fig 2002, 20,000 psi, M | 2″ Fig 2002M | 20,000 psi | |
| 2" Fig 2202, 15,000 psi, F, NACE | 2″ Fig 2202F | 15,000 psi | |
| 2" Fig 2202, 15,000 psi, M, NACE | 2″ Fig 2202M | 15,000 psi | |
| 2" LP, 10,000 psi, B | 2″LP B | 10,000 psi | |
| 2" LP, 10,000 psi, P | 2″LP P | 10,000 psi | |
| 2 3/8" TBG, 5,000 psi, B | 2 3/8″TBG B | 5,000 psi | |
| 2 3/8" TBG, 5,000 psi, P | 2 3/8″TBG P | 5,000 psi | |
| 2 3/8" UPTBG, 5,000 psi, B | 2 3/8″UPTBG B | 5,000 psi | |
| 2 3/8" UPTBG, 5,000 psi, P | 2 3/8″UPTBG P | 5,000 psi | |
| 2 7/8" TBG, 5,000 psi, B | 2 7/8″TBG B | 5,000 psi | |
| 2 7/8" TBG, 5,000 psi, P | 2 7/8″TBG P | 5,000 psi | |
| 2 7/8" UPTBG, 5,000 psi, B | 2 7/8″UPTBG B | 5,000 psi | |
| 2 7/8" UPTBG, 5,000 psi, P | 2 7/8″UPTBG P | 5,000 psi | |
| 2" NPT, 5,000 psi, B | 2 ″NPT B | 5,000 psi | |
| 2" NPT, 5,000 psi, P | 2 ″NPT P | 5,000 psi | |
| 3" Fig 602, 6,000 psi, F /3" Fig 602, 6,000 psi, F, NACE | 3 ″ Fig 602F | 6,000 psi | 6,000 psi |
| 3" Fig 602, 6,000 psi, M /3" Fig 602, 6,000 psi, M, NACE | 3 ″ Fig 602M | 6,000 psi | 6,000 psi |
| 3" Fig 1002, 10,000 psi, F /3" Fig 1002, 7,500 psi, F, NACE | 3 ″ Fig 1002F | 10,000 psi | 7,500 psi |
| 3" Fig 1002, 10,000 psi, M /3" Fig 1002, 7,500 psi, M, NACE | 3 ″ Fig 1002M | 10,000 psi | 7,500 psi |
| 3" Fig 1003, 10,000 psi, F | 3 ″ Fig 1003F | 10,000 psi | |
| 3" Fig 1003, 10,000 psi, M | 3 ″ Fig 1003M | 10,000 psi | |
| 3" Fig 1502, 15,000 psi, F /3" Fig 1502, 10,000 psi, F, NACE | 3 ″ Fig 1502F | 15,000 psi | 10,000 psi |
| 3" Fig 1502, 15,000 psi, M /3" Fig 1502, 10,000 psi, M, NACE | 3 ″ Fig 1502M | 15,000 psi | 10,000 psi |
| 3" Fig 2002, 20,000 psi, F | 3 ″ Fig 2002F | 20,000 psi | |
| 3" Fig 2002, 20,000 psi, M | 3 ″ Fig 2002M | 20,000 psi | |
| 3" Fig 2202, 15,000 psi, F, NACE | 3 ″ Fig 2202F | 15,000 psi | |
| 3" Fig 2202, 15,000 psi, M, NACE | 3 ″ Fig 2202M | 15,000 psi | |
| 3" LP, 10,000 psi, B | 3″LP B | 10,000 psi | |
| 3" LP, 10,000 psi, P | 3″LP P | 10,000 psi | |
| 3 1/2" TBG, 5,000 psi, B | 3 1/2″TBG B | 5,000 psi | |
| 3 1/2" TBG, 5,000 psi, P | 3 1/2″TBG P | 5,000 psi | |
| 3 1/2" UPTBG, 5,000 psi, B | 3 1/2″UPTBG B | 5,000 psi | |
| 3 1/2" UPTBG, 5,000 psi, P | 3 1/2″UPTBG P | 5,000 psi | |
| 3" NPT, 5,000 psi, B | 3 ″NPT B | 5,000 psi | |
| 3" NPT, 5,000 psi, P | 3 ″NPT P | 5,000 psi | |
| 4" Fig 602, 6,000 psi, F /4" Fig 602, 6,000 psi, F, NACE | 4 ″ Fig 602F | 6,000 psi | 6,000 psi |
| 4" Fig 602, 6,000 psi, M /4" Fig 602, 6,000 psi, M, NACE | 4 ″ Fig 602M | 6,000 psi | 6,000 psi |
| 4" Fig 1002, 10,000 psi, F /4" Fig 1002, 7,500 psi, F, NACE | 4 ″ Fig 1002F | 10,000 psi | 7,500 psi |
| 4" Fig 1002, 10,000 psi, M /4" Fig 1002, 7,500 psi, M, NACE | 4 ″ Fig 1002M | 10,000 psi | 7,500 psi |
| 4" Fig 1003, 7,500 psi, F | 4 ″ Fig 1003F | 7,500 psi | |
| 4" Fig 1003, 7,500 psi, M | 4 ″ Fig 1003M | 7,500 psi | |
| 4" Fig 1502, 15,000 psi, F /4" Fig 1502, 10,000 psi, F, NACE | 4 ″ Fig 1502F | 15,000 psi | 10,000 psi |
| 4" Fig 1502, 15,000 psi, M /4" Fig 1502, 10,000 psi, M, NACE | 4 ″ Fig 1502M | 15,000 psi | 10,000 psi |
| 4" Fig 2202, 15,000 psi, F, NACE | 4 ″ Fig 2202F | 15,000 psi | |
| 4" Fig 2202, 15,000 psi, M, NACE | 4 ″ Fig 2202M | 15,000 psi | |
| 4" LP, 10,000 psi, B | 4″LP B | 10,000 psi | |
| 4" LP, 10,000 psi, P | 4″LP P | 10,000 psi | |
| 5" Fig 1002, 7,500 psi, F /5" Fig 1002, 7,500 psi, F, NACE | 5 ″ Fig 1002F | 7,500 psi | 7,500 psi |
| 5" Fig 1002, 7,500 psi, M /5" Fig 1002, 7,500 psi, M, NACE | 5 ″ Fig 1002M | 7,500 psi | 7,500 psi |
| 5" Fig 1502, 15,000 psi, F /5" Fig 1502, 10,000 psi, F, NACE | 5 ″ Fig 1502F | 15,000 psi | 10,000 psi |
| 5" Fig 1502, 15,000 psi, M /5" Fig 1502, 10,000 psi, M, NACE | 5 ″ Fig 1502M | 15,000 psi | 10,000 psi |
| 2 1/16 in API 6A flange, 5,000 psi — standard / sour-service model (NACE) | 2 1/16 in API 6A flange, 5,000 psi | 5,000 psi | 5,000 psi |
| 2 1/16 in API 6A flange, 10,000 psi — standard / sour-service model (NACE) | 2 1/16 in API 6A flange, 10,000 psi | 10,000 psi | 10,000 psi |
| 2 1/16 in API 6A flange, 15,000 psi — standard / sour-service model (NACE) | 2 1/16 in API 6A flange, 15,000 psi | 15,000 psi | 15,000 psi |
| 2 9/16 in API 6A flange, 5,000 psi — standard / sour-service model (NACE) | 2 9/16 in API 6A flange, 5,000 psi | 5,000 psi | 5,000 psi |
| 2 9/16 in API 6A flange, 10,000 psi — standard / sour-service model (NACE) | 2 9/16 in API 6A flange, 10,000 psi | 10,000 psi | 10,000 psi |
| 2 9/16 in API 6A flange, 15,000 psi — standard / sour-service model (NACE) | 2 9/16 in API 6A flange, 15,000 psi | 15,000 psi | 15,000 psi |
| 3 1/8 in API 6A flange, 5,000 psi — standard / sour-service model (NACE) | 3 1/8 in API 6A flange, 5,000 psi | 5,000 psi | 5,000 psi |
| 3 1/16 in API 6A flange, 10,000 psi — standard / sour-service model (NACE) | 3 1/16 in API 6A flange, 10,000 psi | 10,000 psi | 10,000 psi |
| 3 1/16 in API 6A flange, 15,000 psi — standard / sour-service model (NACE) | 3 1/16 in API 6A flange, 15,000 psi | 15,000 psi | 15,000 psi |
| 4 1/16 in API 6A flange, 5,000 psi — standard / sour-service model (NACE) | 4 1/16 in API 6A flange, 5,000 psi | 5,000 psi | 5,000 psi |
| 4 1/16 in API 6A flange, 10,000 psi — standard / sour-service model (NACE) | 4 1/16 in API 6A flange, 10,000 psi | 10,000 psi | 10,000 psi |
| 4 1/16 in API 6A flange, 15,000 psi — standard / sour-service model (NACE) | 4 1/16 in API 6A flange, 15,000 psi | 15,000 psi | 15,000 psi |
Note: M (male) indicates a male union structure; F (female) indicates a female union structure; P (pin) indicates male thread; B (box) indicates female thread. For example, when one end is a Fig 1502 male union with wing nut and the other end is a 2″ Fig 1002 female union with external trapezoidal thread, the purchasing description is: 3″ Fig 1502M - 2″ Fig 1002F Crossover Adapter.
5. Operation and Maintenance Notes
Before use, check the nameplate information and confirm that the pressure rating, specification, temperature range, and connection type match the field flowline system.
Before service and after dismantling or repair, perform hydrostatic testing and seal inspection according to operating procedures. Put the fitting into high-pressure service only after confirming there is no leakage.
During service, regularly inspect wall thickness, sealing faces, and connection areas. Replace the fitting promptly if wear, erosion, or insufficient effective wall thickness is found.
Avoid impact, rain exposure, and contact with corrosive media during transportation and storage. Keep products clean and dry, and manage them by specification.
