1. Product Overview
High-pressure hose loops are used for oilfield cementing, acidizing, fracturing, well testing and temporary high-pressure transfer operations. They are assembled from swivel joints, pup joints and hammer-union connectors.
The articulated assembly can be stacked for transport and storage and is used in temporary high-pressure discharge, well-test and cementing flowlines when the selected style and connection arrangement suit the approved rig-up.
The overall catalogue states 1 in to 4 in and 5,000 psi to 20,000 psi; the model tables on this page list selected 2 in to 4 in assemblies from 6,000 psi to 15,000 psi.
End connectors and pup-joint sections are available in integral and assembled configurations, selected by pressure rating, end profile, lay length and field rig-up requirements.
2. Design Features
Matching swivel joints provide articulation for rig-up and alignment. They are not continuous rotary joints, and the assembled loop must not be repositioned under pressure unless the specific procedure and model expressly permit it.
Sealing performance depends on correct Fig/profile matching, seal condition, make-up and restraint of the assembled temporary flowline.
The modular combination supports field rig-up, break-out and relocation after the line has been isolated and fully depressurized.
Style, CWP, nominal size, Fig designation, lay length, seal material and service environment must be specified for cementing, fracturing, acidizing or well-test duty.
3. Hose Loop Main Technical Parameters

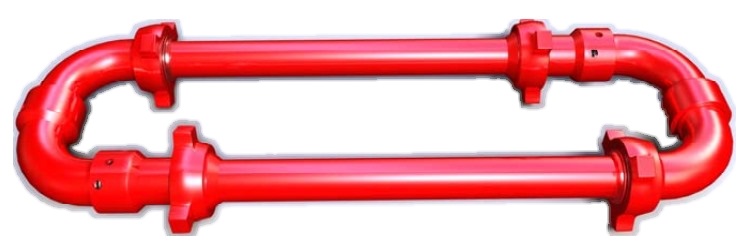

1. Style 50 Long-Radius Swivel Joint + Pup Joint
| Model / Configuration | Cold Working Pressure | End Connection | Lay Length (m) | Service |
|---|---|---|---|---|
| 2" Fig 602, Style 50, 6,000 psi, 2.8 m Lay Length | 6,000 psi | 2″ Fig 602 | 2.8 | Standard |
| 2" Fig 602, Style 50, 6,000 psi, 4.8 m Lay Length | 6,000 psi | 2″ Fig 602 | 4.8 | Standard |
| 2" Fig 602, Style 50, 6,000 psi, 5.8 m Lay Length | 6,000 psi | 2″ Fig 602 | 5.8 | Standard |
| 2" Fig 1002, Style 50, 10,000 psi, 3 m Lay Length | 10,000 psi | 2″ Fig 1002 | 3 | Standard |
| 2" Fig 1002, Style 50, 10,000 psi, 3.8 m Lay Length | 10,000 psi | 2″ Fig 1002 | 3.8 | Standard |
| 2" Fig 1002, Style 50, 10,000 psi, 4.8 m Lay Length | 10,000 psi | 2″ Fig 1002 | 4.8 | Standard |
| 2" Fig 1002, Style 50, 10,000 psi, 5.8 m Lay Length | 10,000 psi | 2″ Fig 1002 | 5.8 | Standard |
| 2" Fig 1502, Style 50, 15,000 psi, 2.8 m Lay Length | 15,000 psi | 2″ Fig 1502 | 2.8 | Standard |
| 2" Fig 1502, Style 50, 15,000 psi, 4.8 m Lay Length | 15,000 psi | 2″ Fig 1502 | 4.8 | Standard |
| 2" Fig 1502, Style 50, 15,000 psi, 5.8 m Lay Length | 15,000 psi | 2″ Fig 1502 | 5.8 | Standard |
| 3" Fig 602, Style 50, 6,000 psi, 3.1 m Lay Length | 6,000 psi | 3″ Fig 602 | 3.1 | Standard |
| 3" Fig 602, Style 50, 6,000 psi, 4.1 m Lay Length | 6,000 psi | 3″ Fig 602 | 4.1 | Standard |
| 3" Fig 602, Style 50, 6,000 psi, 5.1 m Lay Length | 6,000 psi | 3″ Fig 602 | 5.1 | Standard |
| 3" Fig 1002, Style 50, 10,000 psi, 3.1 m Lay Length | 10,000 psi | 3″ Fig 1002 | 3.1 | Standard |
| 3" Fig 1002, Style 50, 10,000 psi, 4.1 m Lay Length | 10,000 psi | 3″ Fig 1002 | 4.1 | Standard |
| 3" Fig 1002, Style 50, 10,000 psi, 5.1 m Lay Length | 10,000 psi | 3″ Fig 1002 | 5.1 | Standard |
| 3" Fig 1502, Style 50, 15,000 psi, 3 m Lay Length | 15,000 psi | 3″ Fig 1502 | 3 | Standard |
| 3" Fig 1502, Style 50, 15,000 psi, 4.5 m Lay Length | 15,000 psi | 3″ Fig 1502 | 4.5 | Standard |
| 3" Fig 1502, Style 50, 15,000 psi, 6 m Lay Length | 15,000 psi | 3″ Fig 1502 | 6 | Standard |
| 4" Fig 602, Style 50, 6,000 psi, 3.3 m Lay Length | 6,000 psi | 4″ Fig 602 | 3.3 | Standard |
| 4" Fig 602, Style 50, 6,000 psi, 4.3 m Lay Length | 6,000 psi | 4″ Fig 602 | 4.3 | Standard |
| 4" Fig 602, Style 50, 6,000 psi, 5.3 m Lay Length | 6,000 psi | 4″ Fig 602 | 5.3 | Standard |
| 4" Fig 1002, Style 50, 10,000 psi, 3.3 m Lay Length | 10,000 psi | 4″ Fig 1002 | 3.3 | Standard |
| 4" Fig 1002, Style 50, 10,000 psi, 4.3 m Lay Length | 10,000 psi | 4″ Fig 1002 | 4.3 | Standard |
| 4" Fig 1002, Style 50, 10,000 psi, 5.3 m Lay Length | 10,000 psi | 4″ Fig 1002 | 5.3 | Standard |
| 4" Fig 1502, Style 50, 15,000 psi, 3.3 m Lay Length | 15,000 psi | 4″ Fig 1502 | 3.3 | Standard |
| 4" Fig 1502, Style 50, 15,000 psi, 4.3 m Lay Length | 15,000 psi | 4″ Fig 1502 | 4.3 | Standard |
| 4" Fig 1502, Style 50, 15,000 psi, 5.3 m Lay Length | 15,000 psi | 4″ Fig 1502 | 5.3 | Standard |
| H2S Service | ||||
| 2" Fig 602, Style 50, 6,000 psi, NACE, 2.8 m Lay Length | 6,000 psi | 2″ Fig 602 | 2.8 | H2S |
| 2" Fig 602, Style 50, 6,000 psi, NACE, 4.8 m Lay Length | 6,000 psi | 2″ Fig 602 | 4.8 | H2S |
| 2" Fig 602, Style 50, 6,000 psi, NACE, 5.8 m Lay Length | 6,000 psi | 2″ Fig 602 | 5.8 | H2S |
| 2" Fig 1002, Style 50, 7,500 psi, NACE, 2.8 m Lay Length | 7,500 psi | 2″ Fig 1002 | 2.8 | H2S |
| 2" Fig 1002, Style 50, 7,500 psi, NACE, 4.8 m Lay Length | 7,500 psi | 2″ Fig 1002 | 4.8 | H2S |
| 2" Fig 1002, Style 50, 7,500 psi, NACE, 5.8 m Lay Length | 7,500 psi | 2″ Fig 1002 | 5.8 | H2S |
| 2" Fig 1502, Style 50, 10,000 psi, NACE, 2.8 m Lay Length | 10,000 psi | 2″ Fig 1502 | 2.8 | H2S |
| 2" Fig 1502, Style 50, 10,000 psi, NACE, 4.8 m Lay Length | 10,000 psi | 2″ Fig 1502 | 4.8 | H2S |
| 2" Fig 1502, Style 50, 10,000 psi, NACE, 5.8 m Lay Length | 10,000 psi | 2″ Fig 1502 | 5.8 | H2S |
| 3" Fig 602, Style 50, 6,000 psi, NACE, 3.1 m Lay Length | 6,000 psi | 3″ Fig 602 | 3.1 | H2S |
| 3" Fig 602, Style 50, 6,000 psi, NACE, 4.1 m Lay Length | 6,000 psi | 3″ Fig 602 | 4.1 | H2S |
| 3" Fig 602, Style 50, 6,000 psi, NACE, 5.1 m Lay Length | 6,000 psi | 3″ Fig 602 | 5.1 | H2S |
| 3" Fig 1002, Style 50, 7,500 psi, NACE, 3.1 m Lay Length | 7,500 psi | 3″ Fig 1002 | 3.1 | H2S |
| 3" Fig 1002, Style 50, 7,500 psi, NACE, 4.1 m Lay Length | 7,500 psi | 3″ Fig 1002 | 4.1 | H2S |
| 3" Fig 1002, Style 50, 7,500 psi, NACE, 5.1 m Lay Length | 7,500 psi | 3″ Fig 1002 | 5.1 | H2S |
| 3" Fig 1502, Style 50, 10,000 psi, NACE, 3.1 m Lay Length | 10,000 psi | 3″ Fig 1502 | 3.1 | H2S |
| 3" Fig 1502, Style 50, 10,000 psi, NACE, 4.1 m Lay Length | 10,000 psi | 3″ Fig 1502 | 4.1 | H2S |
| 3" Fig 1502, Style 50, 10,000 psi, NACE, 5.1 m Lay Length | 10,000 psi | 3″ Fig 1502 | 5.1 | H2S |
| 4" Fig 602, Style 50, 6,000 psi, NACE, 3.3 m Lay Length | 6,000 psi | 4″ Fig 602 | 3.3 | H2S |
| 4" Fig 602, Style 50, 6,000 psi, NACE, 4.3 m Lay Length | 6,000 psi | 4″ Fig 602 | 4.3 | H2S |
| 4" Fig 602, Style 50, 6,000 psi, NACE, 5.3 m Lay Length | 6,000 psi | 4″ Fig 602 | 5.3 | H2S |
| 4" Fig 1002, Style 50, 7,500 psi, NACE, 3.3 m Lay Length | 7,500 psi | 4″ Fig 1002 | 3.3 | H2S |
| 4" Fig 1002, Style 50, 7,500 psi, NACE, 4.3 m Lay Length | 7,500 psi | 4″ Fig 1002 | 4.3 | H2S |
| 4" Fig 1002, Style 50, 7,500 psi, NACE, 5.3 m Lay Length | 7,500 psi | 4″ Fig 1002 | 5.3 | H2S |
| 4" Fig 1502, Style 50, 10,000 psi, NACE, 3.3 m Lay Length | 10,000 psi | 4″ Fig 1502 | 3.3 | H2S |
| 4" Fig 1502, Style 50, 10,000 psi, NACE, 4.3 m Lay Length | 10,000 psi | 4″ Fig 1502 | 4.3 | H2S |
| 4" Fig 1502, Style 50, 10,000 psi, NACE, 5.3 m Lay Length | 10,000 psi | 4″ Fig 1502 | 5.3 | H2S |

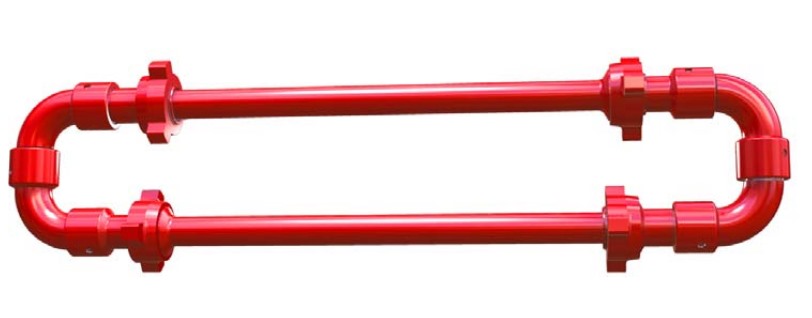

2. Style 10 Long-Radius Swivel Joint + Pup Joint
| Model / Configuration | Cold Working Pressure | End Connection | Lay Length (m) | Service |
|---|---|---|---|---|
| 2" Fig 602, Style 10, 6,000 psi, 3 m Lay Length | 6,000 psi | 2″ Fig 602 | 3 | Standard |
| 2" Fig 602, Style 10, 6,000 psi, 4.5 m Lay Length | 6,000 psi | 2″ Fig 602 | 4.5 | Standard |
| 2" Fig 602, Style 10, 6,000 psi, 6 m Lay Length | 6,000 psi | 2″ Fig 602 | 6 | Standard |
| 2" Fig 1002, Style 10, 10,000 psi, 3 m Lay Length | 10,000 psi | 2″ Fig 1002 | 3 | Standard |
| 2" Fig 1002, Style 10, 10,000 psi, 4.5 m Lay Length | 10,000 psi | 2″ Fig 1002 | 4.5 | Standard |
| 2" Fig 1002, Style 10, 10,000 psi, 6 m Lay Length | 10,000 psi | 2″ Fig 1002 | 6 | Standard |
| 2" Fig 1502, Style 10, 15,000 psi, 3 m Lay Length | 15,000 psi | 2″ Fig 1502 | 3 | Standard |
| 2" Fig 1502, Style 10, 15,000 psi, 4.5 m Lay Length | 15,000 psi | 2″ Fig 1502 | 4.5 | Standard |
| 2" Fig 1502, Style 10, 15,000 psi, 6 m Lay Length | 15,000 psi | 2″ Fig 1502 | 6 | Standard |
| 3" Fig 602, Style 10, 6,000 psi, 3.5 m Lay Length | 6,000 psi | 3″ Fig 602 | 3.5 | Standard |
| 3" Fig 602, Style 10, 6,000 psi, 4.5 m Lay Length | 6,000 psi | 3″ Fig 602 | 4.5 | Standard |
| 3" Fig 602, Style 10, 6,000 psi, 5.5 m Lay Length | 6,000 psi | 3″ Fig 602 | 5.5 | Standard |
| 3" Fig 1002, Style 10, 10,000 psi, 3.5 m Lay Length | 10,000 psi | 3″ Fig 1002 | 3.5 | Standard |
| 3" Fig 1002, Style 10, 10,000 psi, 4.5 m Lay Length | 10,000 psi | 3″ Fig 1002 | 4.5 | Standard |
| 3" Fig 1002, Style 10, 10,000 psi, 5.5 m Lay Length | 10,000 psi | 3″ Fig 1002 | 5.5 | Standard |
| 3" Fig 1502, Style 10, 15,000 psi, 3.5 m Lay Length | 15,000 psi | 3″ Fig 1502 | 3.5 | Standard |
| 3" Fig 1502, Style 10, 15,000 psi, 4.5 m Lay Length | 15,000 psi | 3″ Fig 1502 | 4.5 | Standard |
| 3" Fig 1502, Style 10, 15,000 psi, 5.5 m Lay Length | 15,000 psi | 3″ Fig 1502 | 5.5 | Standard |
| 4" Fig 602, Style 10, 6,000 psi, 3.6 m Lay Length | 6,000 psi | 4″ Fig 602 | 3.6 | Standard |
| 4" Fig 602, Style 10, 6,000 psi, 4.6 m Lay Length | 6,000 psi | 4″ Fig 602 | 4.6 | Standard |
| 4" Fig 602, Style 10, 6,000 psi, 5.6 m Lay Length | 6,000 psi | 4″ Fig 602 | 5.6 | Standard |
| 4" Fig 1002, Style 10, 10,000 psi, 3.6 m Lay Length | 10,000 psi | 4″ Fig 1002 | 3.6 | Standard |
| 4" Fig 1002, Style 10, 10,000 psi, 4.6 m Lay Length | 10,000 psi | 4″ Fig 1002 | 4.6 | Standard |
| 4" Fig 1002, Style 10, 10,000 psi, 5.6 m Lay Length | 10,000 psi | 4″ Fig 1002 | 5.6 | Standard |
| 4" Fig 1502, Style 10, 15,000 psi, 3.6 m Lay Length | 15,000 psi | 4″ Fig 1502 | 3.6 | Standard |
| 4" Fig 1502, Style 10, 15,000 psi, 4.6 m Lay Length | 15,000 psi | 4″ Fig 1502 | 4.6 | Standard |
| 4" Fig 1502, Style 10, 15,000 psi, 5.6 m Lay Length | 15,000 psi | 4″ Fig 1502 | 5.6 | Standard |
| H2S Service | ||||
| 2" Fig 602, Style 10, 6,000 psi, NACE, 3 m Lay Length | 6,000 psi | 2″ Fig 602 | 3 | H2S |
| 2" Fig 602, Style 10, 6,000 psi, NACE, 4.5 m Lay Length | 6,000 psi | 2″ Fig 602 | 4.5 | H2S |
| 2" Fig 602, Style 10, 6,000 psi, NACE, 6 m Lay Length | 6,000 psi | 2″ Fig 602 | 6 | H2S |
| 2" Fig 1002, Style 10, 7,500 psi, NACE, 3 m Lay Length | 7,500 psi | 2″ Fig 1002 | 3 | H2S |
| 2" Fig 1002, Style 10, 7,500 psi, NACE, 4.5 m Lay Length | 7,500 psi | 2″ Fig 1002 | 4.5 | H2S |
| 2" Fig 1002, Style 10, 7,500 psi, NACE, 6 m Lay Length | 7,500 psi | 2″ Fig 1002 | 6 | H2S |
| 2" Fig 1502, Style 10, 10,000 psi, NACE, 3 m Lay Length | 10,000 psi | 2″ Fig 1502 | 3 | H2S |
| 2" Fig 1502, Style 10, 10,000 psi, NACE, 4.5 m Lay Length | 10,000 psi | 2″ Fig 1502 | 4.5 | H2S |
| 2" Fig 1502, Style 10, 10,000 psi, NACE, 6 m Lay Length | 10,000 psi | 2″ Fig 1502 | 6 | H2S |
| 3" Fig 602, Style 10, 6,000 psi, NACE, 3 m Lay Length | 6,000 psi | 3″ Fig 602 | 3 | H2S |
| 3" Fig 602, Style 10, 6,000 psi, NACE, 4.5 m Lay Length | 6,000 psi | 3″ Fig 602 | 4.5 | H2S |
| 3" Fig 602, Style 10, 6,000 psi, NACE, 6 m Lay Length | 6,000 psi | 3″ Fig 602 | 6 | H2S |
| 3" Fig 1002, Style 10, 7,500 psi, NACE, 3 m Lay Length | 7,500 psi | 3″ Fig 1002 | 3 | H2S |
| 3" Fig 1002, Style 10, 7,500 psi, NACE, 4.5 m Lay Length | 7,500 psi | 3″ Fig 1002 | 4.5 | H2S |
| 3" Fig 1002, Style 10, 7,500 psi, NACE, 6 m Lay Length | 7,500 psi | 3″ Fig 1002 | 6 | H2S |
| 3" Fig 1502, Style 10, 10,000 psi, NACE, 3 m Lay Length | 10,000 psi | 3″ Fig 1502 | 3 | H2S |
| 3" Fig 1502, Style 10, 10,000 psi, NACE, 4.5 m Lay Length | 10,000 psi | 3″ Fig 1502 | 4.5 | H2S |
| 3" Fig 1502, Style 10, 10,000 psi, NACE, 6 m Lay Length | 10,000 psi | 3″ Fig 1502 | 6 | H2S |
| 4" Fig 602, Style 10, 6,000 psi, NACE, 3.6 m Lay Length | 6,000 psi | 4″ Fig 602 | 3.6 | H2S |
| 4" Fig 602, Style 10, 6,000 psi, NACE, 4.6 m Lay Length | 6,000 psi | 4″ Fig 602 | 4.6 | H2S |
| 4" Fig 602, Style 10, 6,000 psi, NACE, 5.6 m Lay Length | 6,000 psi | 4″ Fig 602 | 5.6 | H2S |
| 4" Fig 1002, Style 10, 7,500 psi, NACE, 3.6 m Lay Length | 7,500 psi | 4″ Fig 1002 | 3.6 | H2S |
| 4" Fig 1002, Style 10, 7,500 psi, NACE, 4.6 m Lay Length | 7,500 psi | 4″ Fig 1002 | 4.6 | H2S |
| 4" Fig 1002, Style 10, 7,500 psi, NACE, 5.6 m Lay Length | 7,500 psi | 4″ Fig 1002 | 5.6 | H2S |
| 4" Fig 1502, Style 10, 10,000 psi, NACE, 3.6 m Lay Length | 10,000 psi | 4″ Fig 1502 | 3.6 | H2S |
| 4" Fig 1502, Style 10, 10,000 psi, NACE, 4.6 m Lay Length | 10,000 psi | 4″ Fig 1502 | 4.6 | H2S |
| 4" Fig 1502, Style 10, 10,000 psi, NACE, 5.6 m Lay Length | 10,000 psi | 4″ Fig 1502 | 5.6 | H2S |
3. Style 50 Long-Radius Swivel Joint + Non-Pressure-Seal-Thread (NPST) Pup Joint
| Model / Configuration | Cold Working Pressure | End Connection | Lay Length (m) | Service |
|---|---|---|---|---|
| 2" Fig 602, Style 50, NPST, 6,000 psi, 3 m Lay Length | 6,000 psi | 2″ Fig 602 | 3 | Standard |
| 2" Fig 1002, Style 50, NPST, 10,000 psi, 3 m Lay Length | 10,000 psi | 2″ Fig 1002 | 3 | Standard |
| 2" Fig 1502, Style 50, NPST, 15,000 psi, 3 m Lay Length | 15,000 psi | 2″ Fig 1502 | 3 | Standard |
| 3" Fig 602, Style 50, NPST, 6,000 psi, 3 m Lay Length | 6,000 psi | 3″ Fig 602 | 3 | Standard |
| 3" Fig 1002, Style 50, NPST, 10,000 psi, 3 m Lay Length | 10,000 psi | 3″ Fig 1002 | 3 | Standard |
| 3" Fig 1502, Style 50, NPST, 15,000 psi, 3 m Lay Length | 15,000 psi | 3″ Fig 1502 | 3 | Standard |
| H2S Service | ||||
| 2" Fig 602, Style 50, NPST, 6,000 psi, NACE, 3 m Lay Length | 6,000 psi | 2″ Fig 602 | 3 | H2S |
| 2" Fig 1002, Style 50, NPST, 7,500 psi, NACE, 3 m Lay Length | 7,500 psi | 2″ Fig 1002 | 3 | H2S |
| 2" Fig 1502, Style 50, NPST, 10,000 psi, NACE, 3 m Lay Length | 10,000 psi | 2″ Fig 1502 | 3 | H2S |
| 3" Fig 602, Style 50, NPST, 6,000 psi, NACE, 3 m Lay Length | 6,000 psi | 3″ Fig 602 | 3 | H2S |
| 3" Fig 1002, Style 50, NPST, 7,500 psi, NACE, 3 m Lay Length | 7,500 psi | 3″ Fig 1002 | 3 | H2S |
| 3" Fig 1502, Style 50, NPST, 10,000 psi, NACE, 3 m Lay Length | 10,000 psi | 3″ Fig 1502 | 3 | H2S |

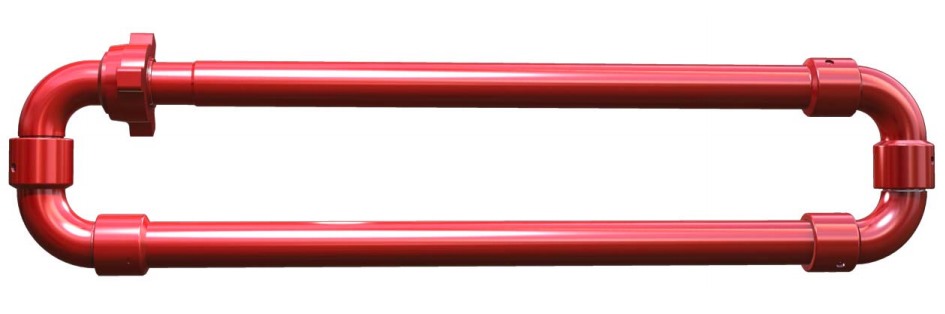

4. Hose Loop Assembly
| Model / Configuration | Cold Working Pressure | End Connection | Lay Length (m) | Service |
|---|---|---|---|---|
| 2" Fig 1002, Flexible, 10,000 psi, 2.6 m Lay Length | 10,000 psi | 2″ Fig 1002 | 2.6 | Standard |
| 2" Fig 1502, Flexible, 15,000 psi, 3 m Lay Length | 15,000 psi | 2″ Fig 1502 | 3 | Standard |
| 3" Fig 1502, Flexible, 15,000 psi, 3 m Lay Length | 15,000 psi | 3″ Fig 1502 | 3 | Standard |
| H2S Service | ||||
| 2" Fig 1502, Flexible, 10,000 psi, NACE, 3 m Lay Length | 10,000 psi | 2″ Fig 1502 | 3 | H2S |
| 3" Fig 1502, Flexible, 10,000 psi, NACE, 3 m Lay Length | 10,000 psi | 3″ Fig 1502 | 3 | H2S |
