1. Product Overview

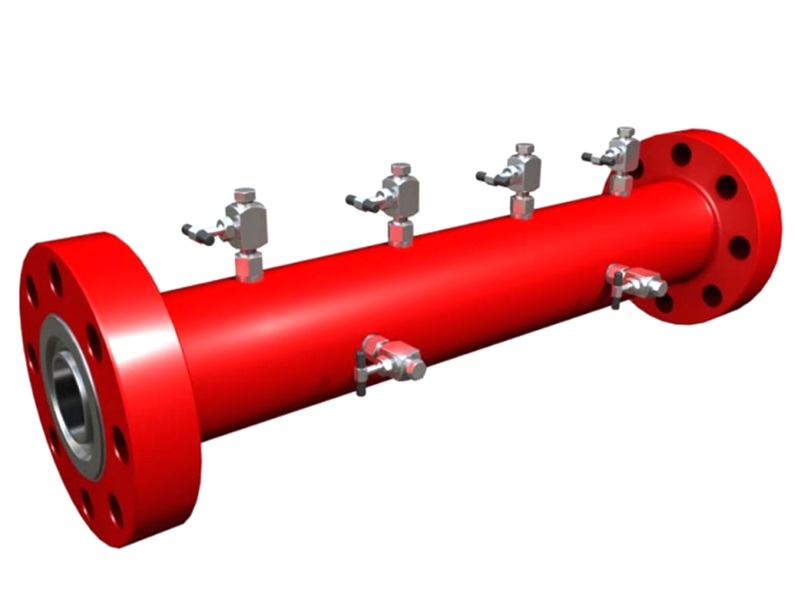

The data header provides pressure, temperature and other instrument take-off connections in high-pressure flowlines and manifold systems. Union ends and specified API 6A flanged ends are available.
Pressure ratings cover 5,000 psi to 15,000 psi, depending on the selected end connection. Available for standard service and sour service. For sour service, wetted metallic materials are selected for the specified environment in accordance with NACE MR0175/ISO 15156.
Selection is based on field instrument interfaces, line pressure rating, and connection type.
2. Data Header Main Technical Parameters
| Model / Configuration | Assembly Pressure Rating | End Connection |
|---|---|---|
| 2" Fig 602, 6,000 psi | 6,000 psi (42 MPa) | 2″ Fig 602 |
| 3" Fig 1002, 10,000 psi | 10,000 psi (70 MPa) | 3″ Fig 1002 |
| 3" Fig 1502, 15,000 psi | 15,000 psi (105 MPa) | 3″ Fig 1502 |
| 3 1/8" API 6A Flange, 5,000 psi | 5,000 psi (35 MPa) | 3 1/8 in API 6A flange, 5,000 psi |
| 3 1/16" API 6A Flange, 10,000 psi | 10,000 psi (70 MPa) | 3 1/16 in API 6A flange, 10,000 psi |
| 3 1/16" API 6A Flange, 15,000 psi | 15,000 psi (105 MPa) | 3 1/16 in API 6A flange, 15,000 psi |
| 4 1/16" API 6A Flange, 5,000 psi | 5,000 psi (35 MPa) | 4 1/16 in API 6A flange, 5,000 psi |
| 4 1/16" API 6A Flange, 10,000 psi | 10,000 psi (70 MPa) | 4 1/16 in API 6A flange, 10,000 psi |
| 4 1/16" API 6A Flange, 15,000 psi | 15,000 psi (105 MPa) | 4 1/16 in API 6A flange, 15,000 psi |
